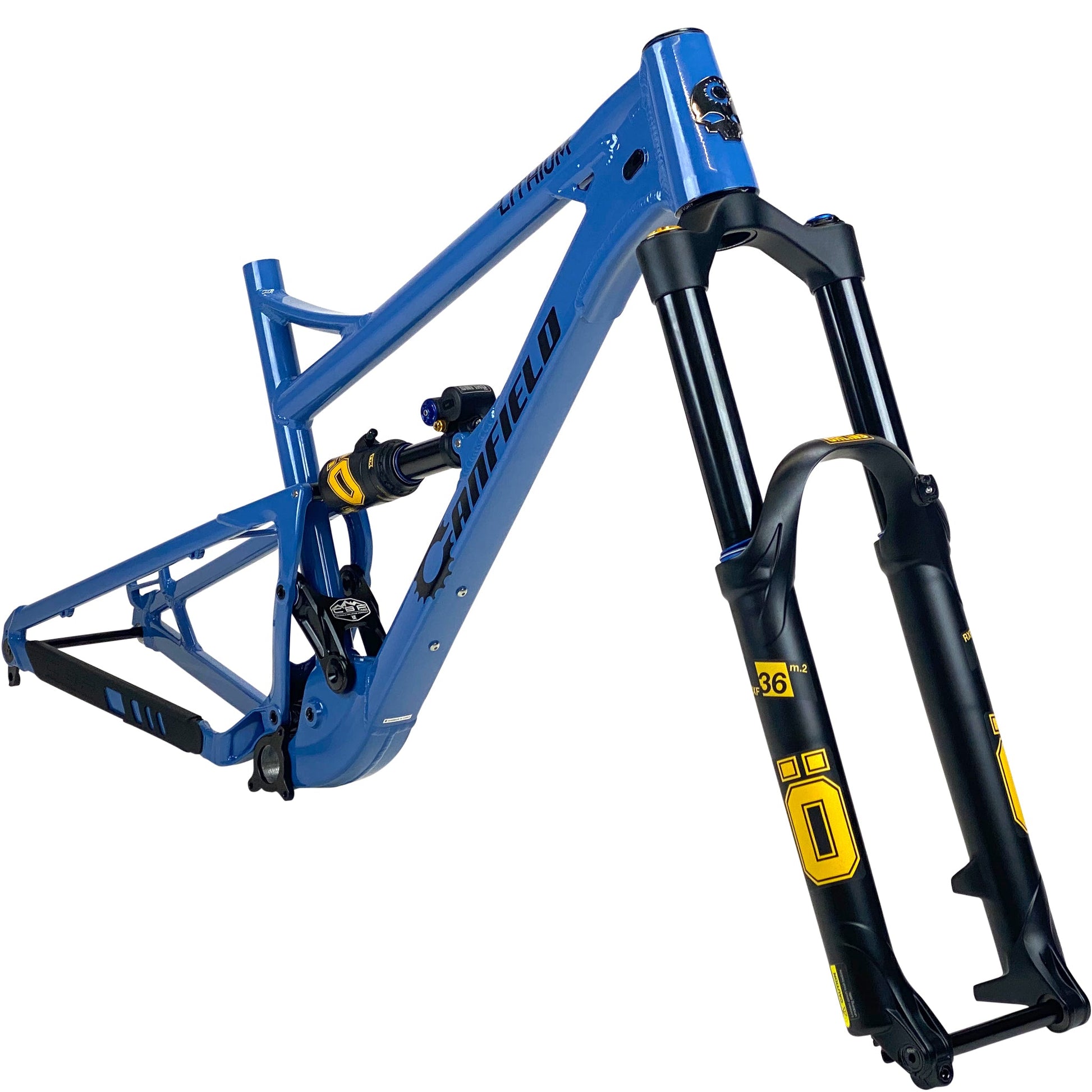

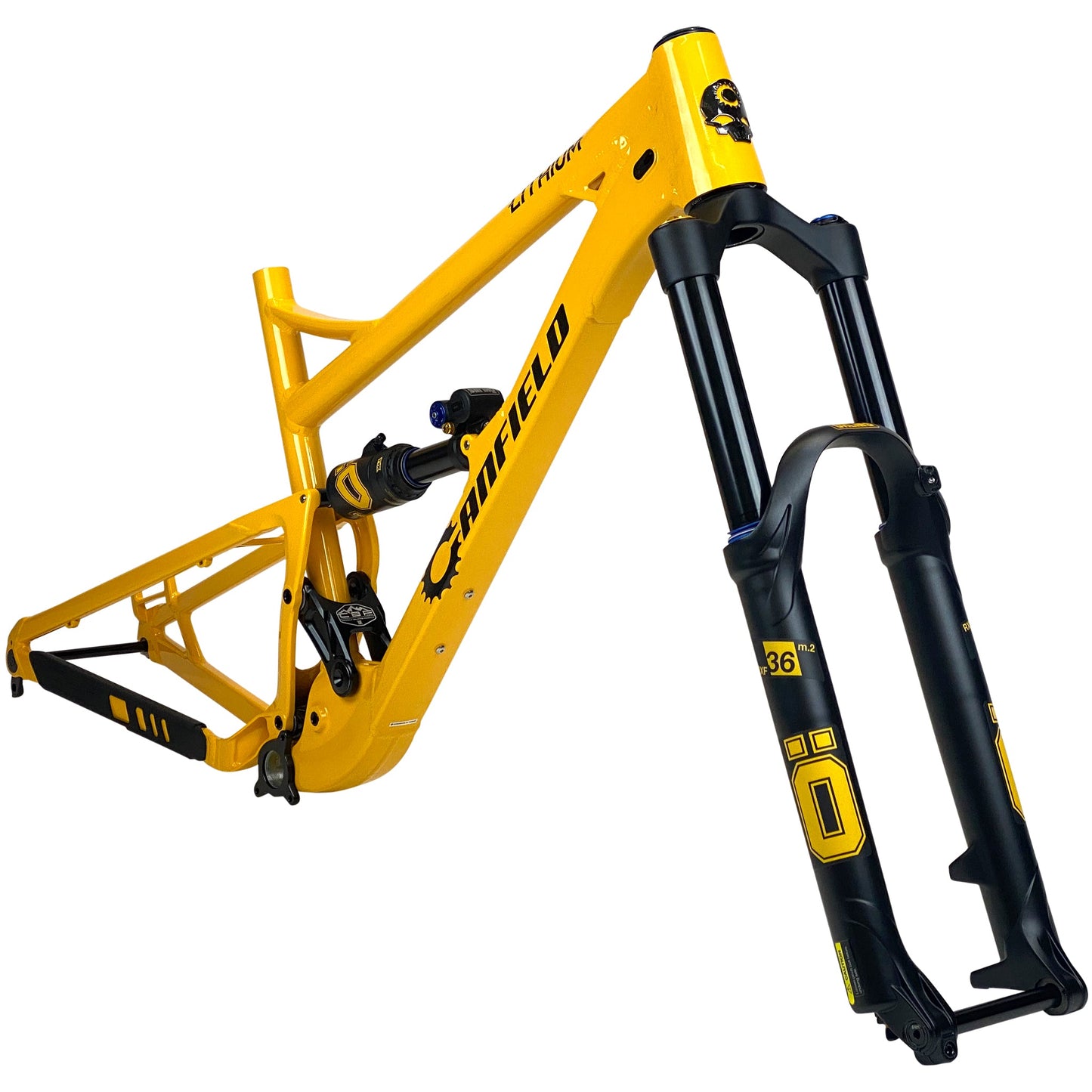

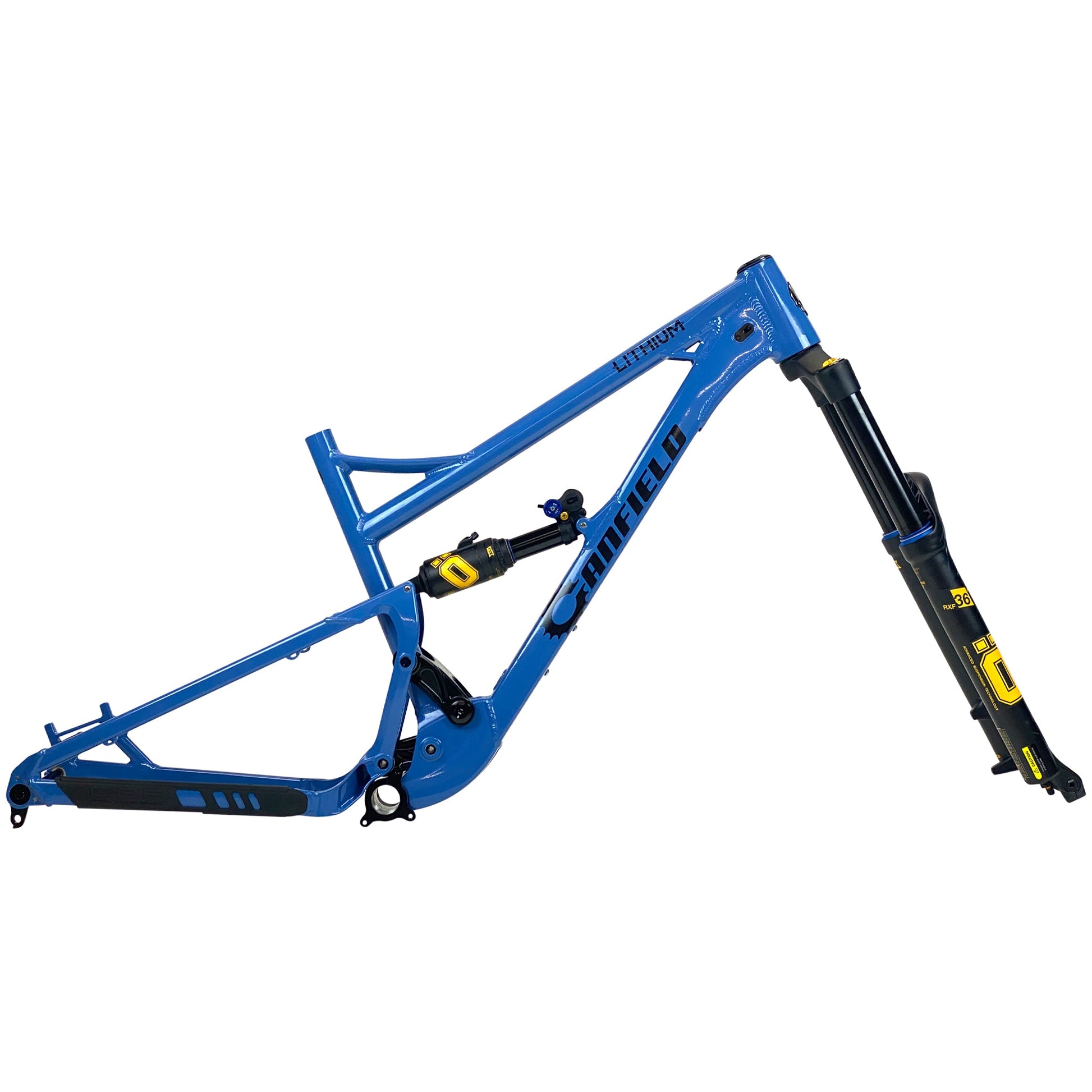

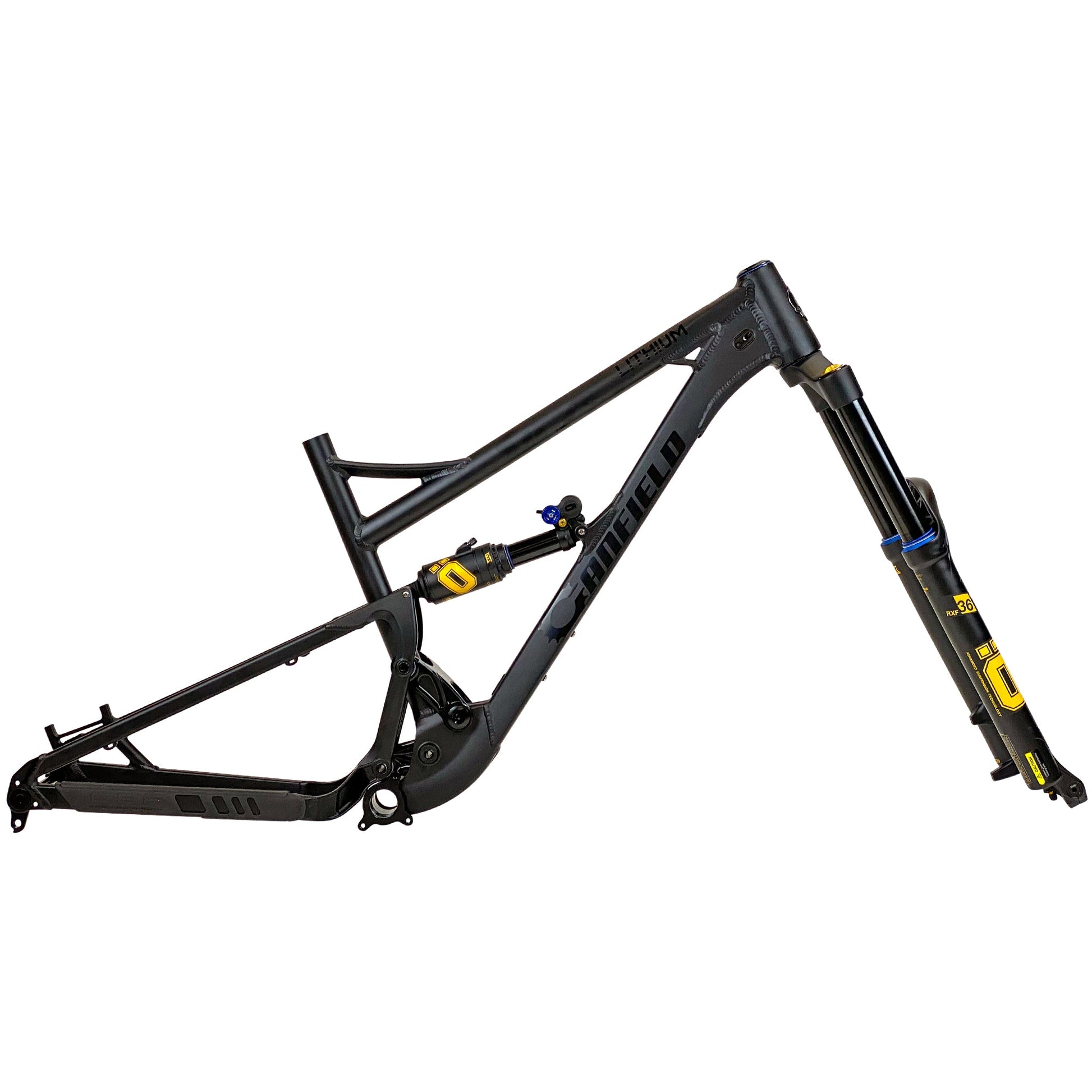

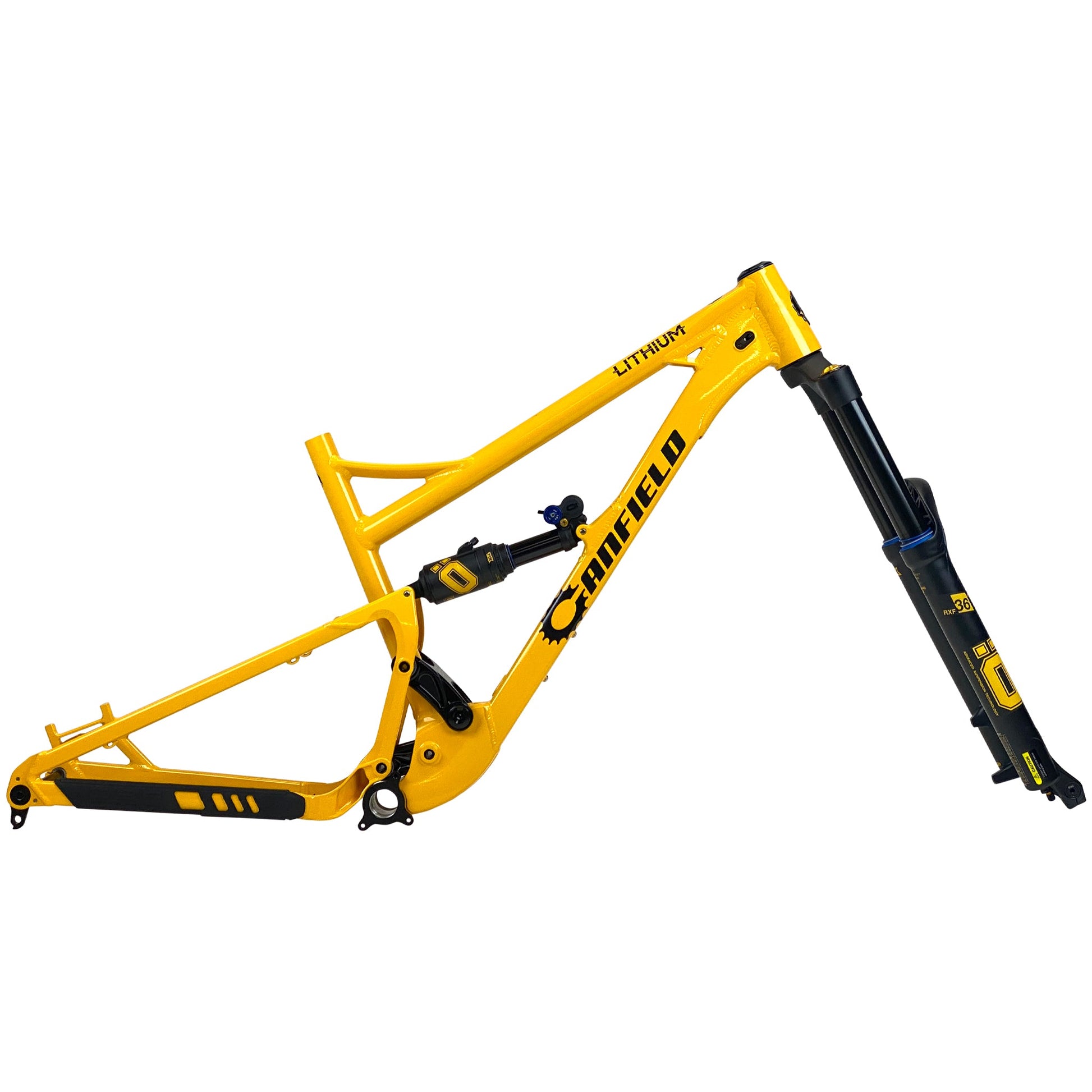

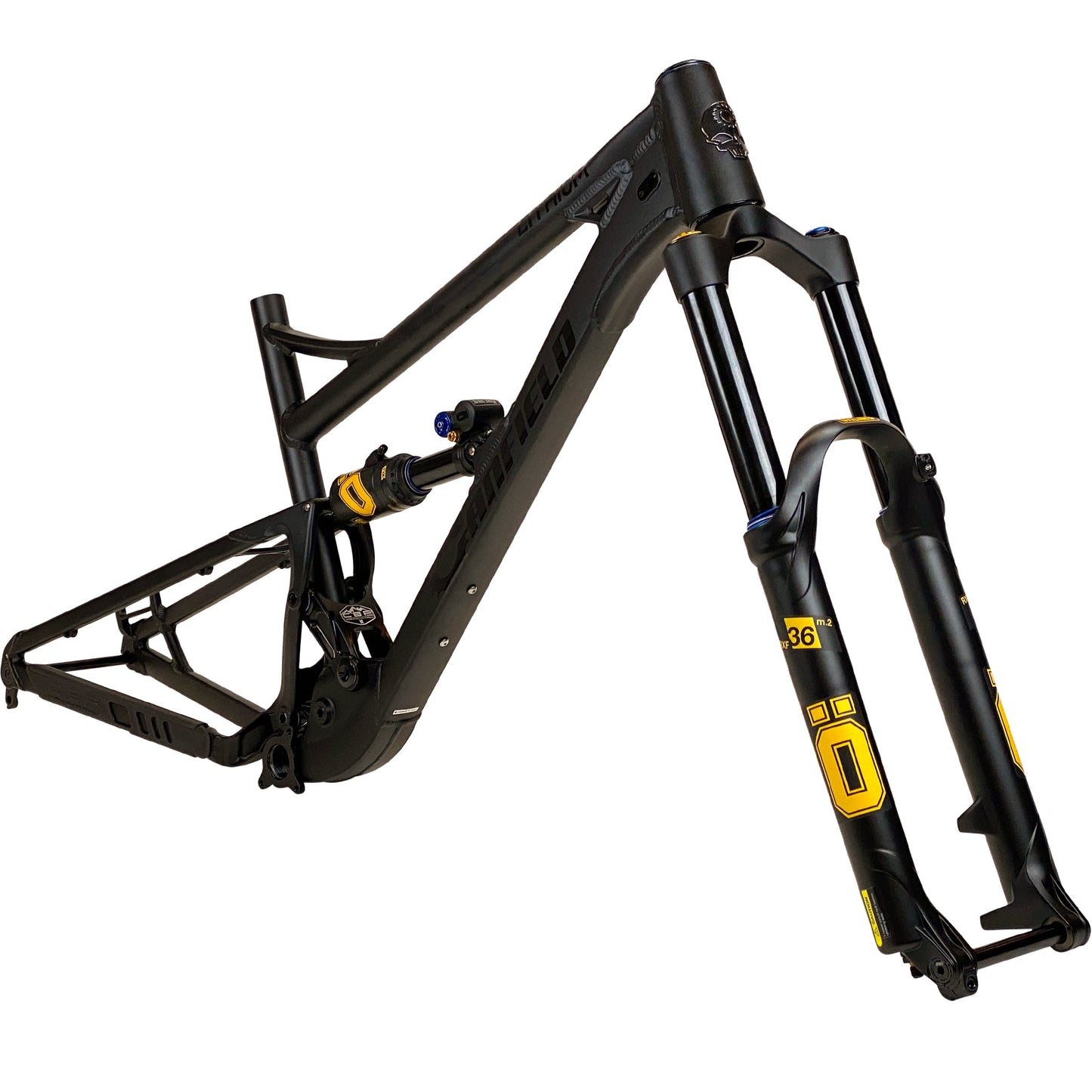

Canfield Lithium - Frame, Fork + Shock

29" WHEELS // 163mm REAR // 170mm FRONT

*PLEASE CONTACT US FOR AVAILABILITY*

Say hello to the mountain’s wildest contender. Engineered to crush massive descents without hesitation and built to embrace every ounce of effort it takes to get there. Whether you're charging through enduro stages, ripping bike park laps, or exploring rugged backcountry, the Lithium is a big-wheeled powerhouse ready for whatever the mountain dishes out.

GEO & SIZING

	SMALL	MEDIUM	LARGE	XL
Top Tube Length (Effective)	575	601	628	655
Reach	425	450	475	500
Front Center	764	791	818	845
Stack	635	640	644	649
Standover	702	739	770	782
Wheel Base	1193	1221	1248	1275
Head Tube Angle*	64.5°	64.5°	64.5°	64.5°
Head Tube Length	110	115	120	125
Seat Tube Angle (Effective)	76.7°	76.7°	76.7°	76.7°
Seat Tube Angle (Actual)	69.1°	69.1°	69.1°	69.1°
Seat Tube Length	380	420	460	490
Chainstay Length	430	430	430	430
Bottom Bracket Height (Approx.)**	350	350	350	350
Bottom Bracket Drop	28	28	28	28
Rider Height***	5'2" - 5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*Geo based on 582 axle to crown fork (170mm)

**Based on 2.5 tires and 582 axle to crown fork (170mm)

***Recommendation only. Sizing depends on body type, personal preference and riding style.

Seat Height vs. Effective Seat Tube Angle

600mm = 77.43 °

700mm = 76.23 °

800mm = 75.33 °

FEATURES
• 29” All-Mountain/Enduro
• Patented Canfield Balance Formula™ Suspension
• Internal cable routing
• Forged clamshell bottom bracket assembly

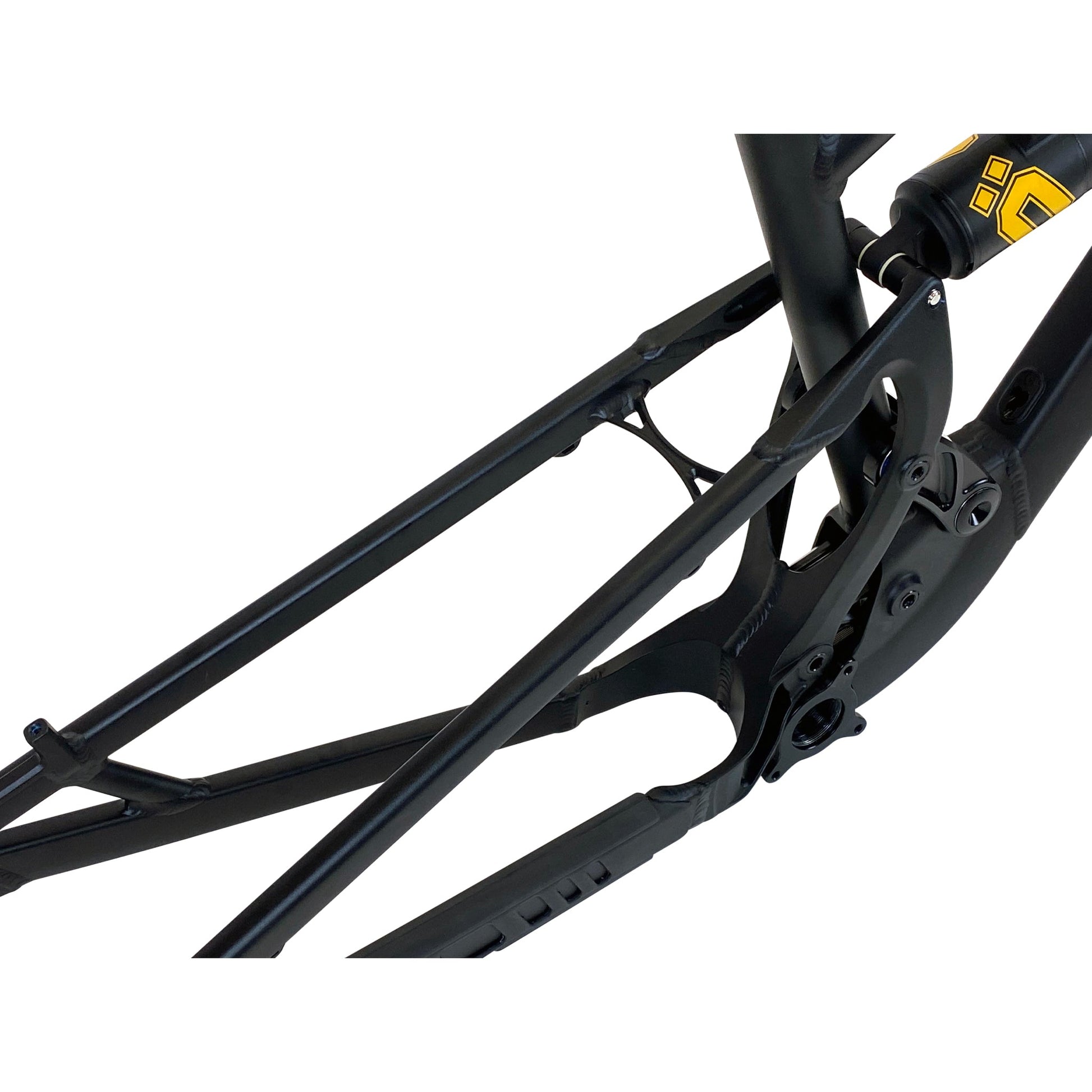

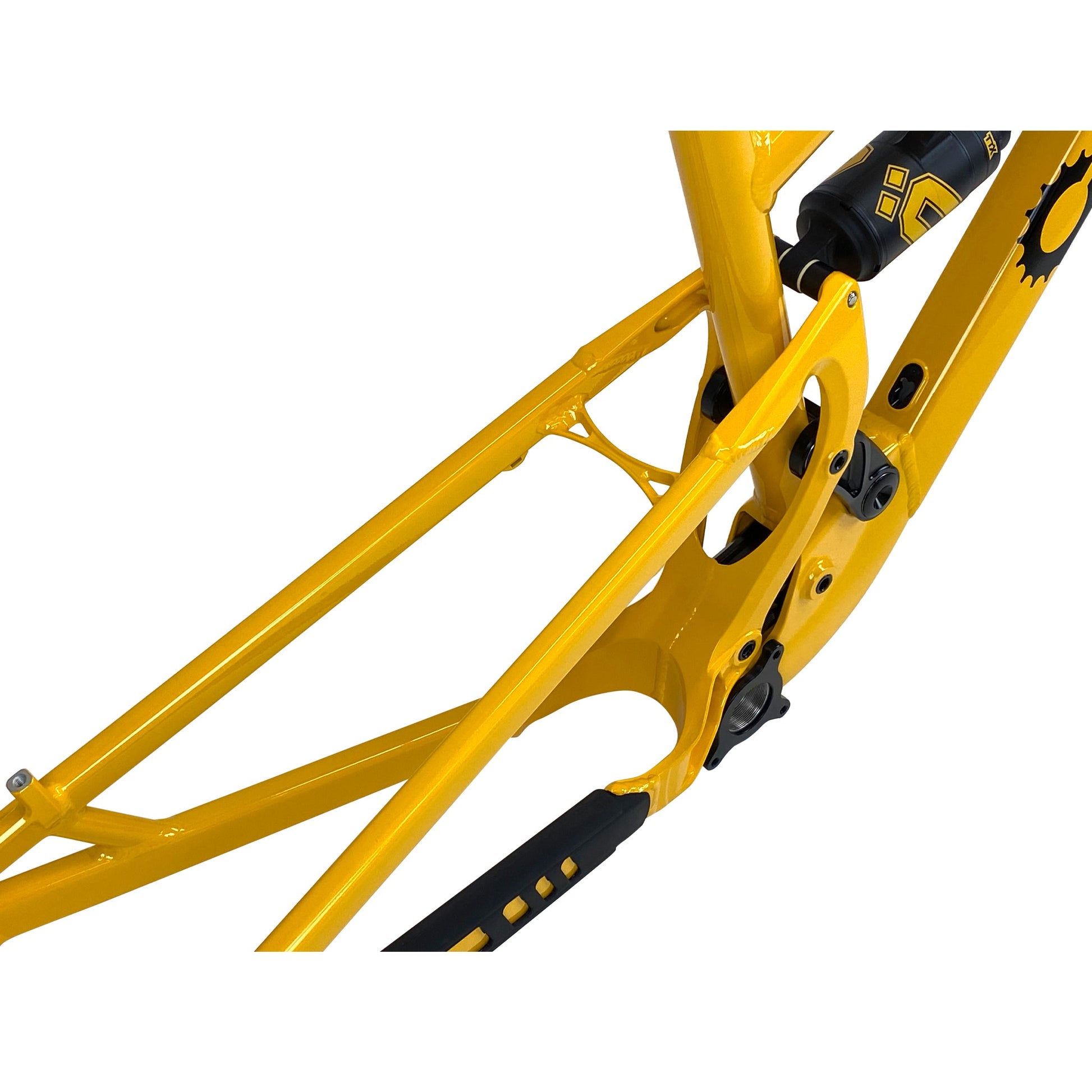

• Redesigned rear-triangle with forged one-piece vertical stays
• One-piece upper and lower links
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
• Available in Small, Medium, Large and X-Large

FRAME SPECS
• 7005 aluminum with CNC 7075 links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-163mm travel: 230mm x 65mm, (20mmX8mm/40mmX8mm hardware)
• Optimized for air or coil shocks
• Recommend fork length: 160mm – 180mm
• Recommended fork offset: 44mm
• Tapered Headtube 44mm upper/56mm lower
• 15mm pivot bearings (6902 Max)
• Bottom bracket: 73mm, BSA threaded
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.7 pounds
-Frame w/ shock: 8.8 pounds
-Complete (carbon wheels, air shock): 31.8 pounds
-Complete (aluminum wheels, coil shock): 33 pounds

NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown.

LITHIUM COIL SPRING RATE RECOMMENDATIONS

Rider Weight	Coil Spring Rate
120-140lbs	300
140-160lbs	350
160-180lbs	400
180-200lbs	450
200-220lbs	500
220lbs+	550

LITHIUM SHOCK FITMENT COMPATIBILITY (SMALL/MEDIUM)

Shock	Small	Medium
Rockshox Super Deluxe Air 2022 (B2)	NO	YES (Reversed)
Rockshox Super Deluxe Air 2023+ (C1)	NO	NO
Rockshox Super Deluxe Coil 2022 (A1)	YES	YES
Rockshox Super Deluxe coil 2023+ (B1)	YES	YES
MRP Hazard Coil	YES	YES
Cane Creek Kitsuma Air	YES	YES
Ohlins TTX2 Air	YES	YES
DVO Topaz	YES	YES
DVO Jade	YES	YES
Fox FLOAT X	NO	YES (Reversed)
Fox FLOAT X2	YES	YES
Fox DHX2	YES	YES
