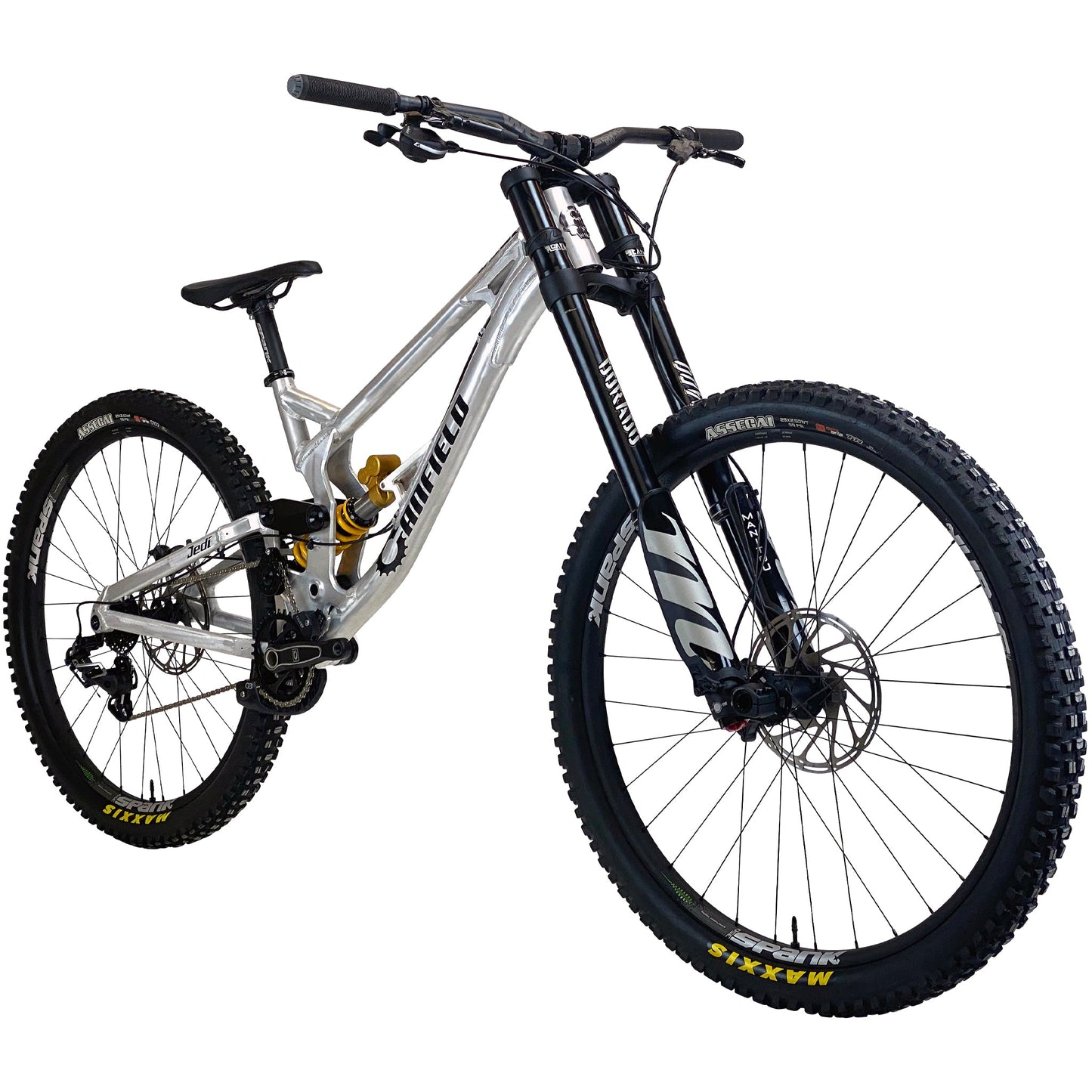

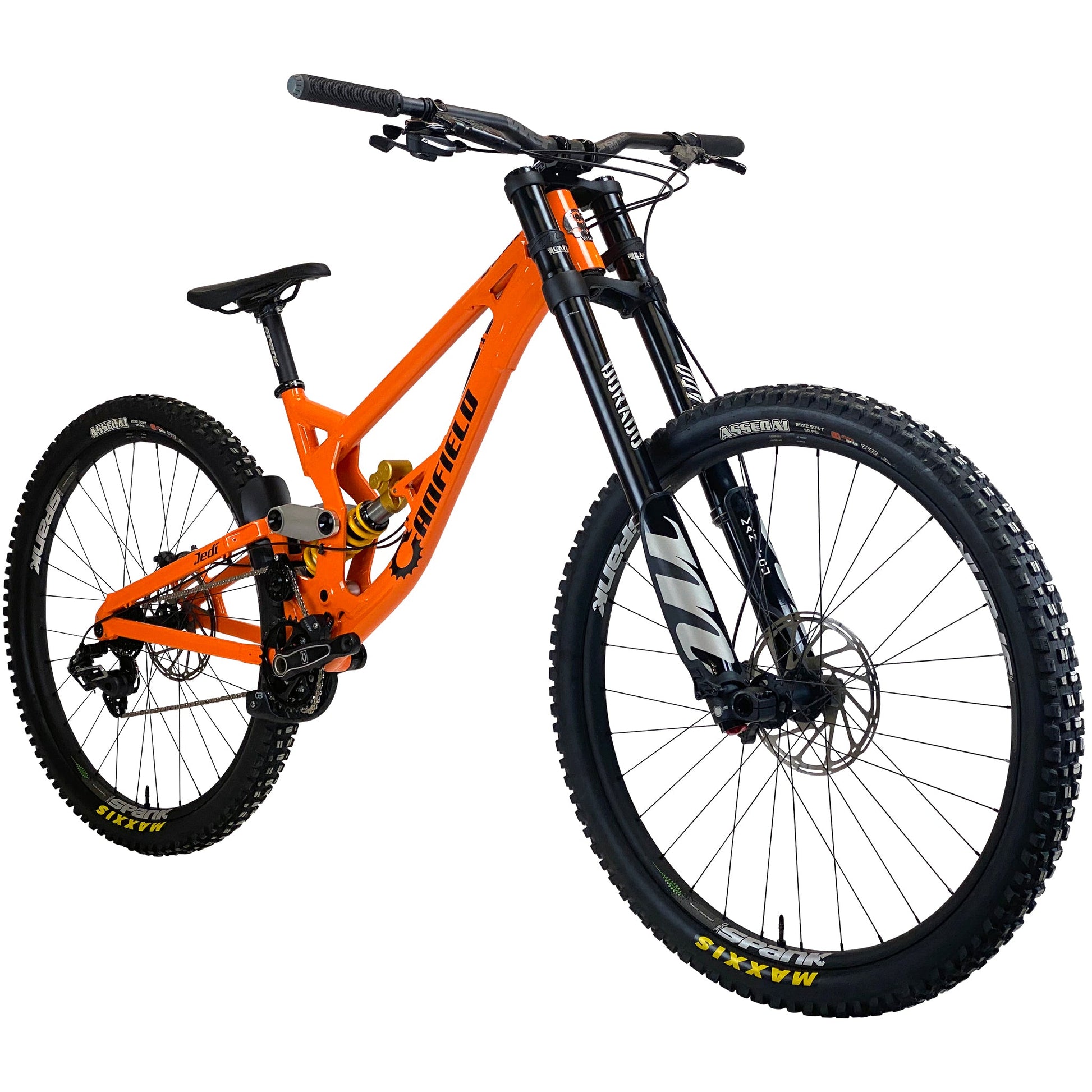

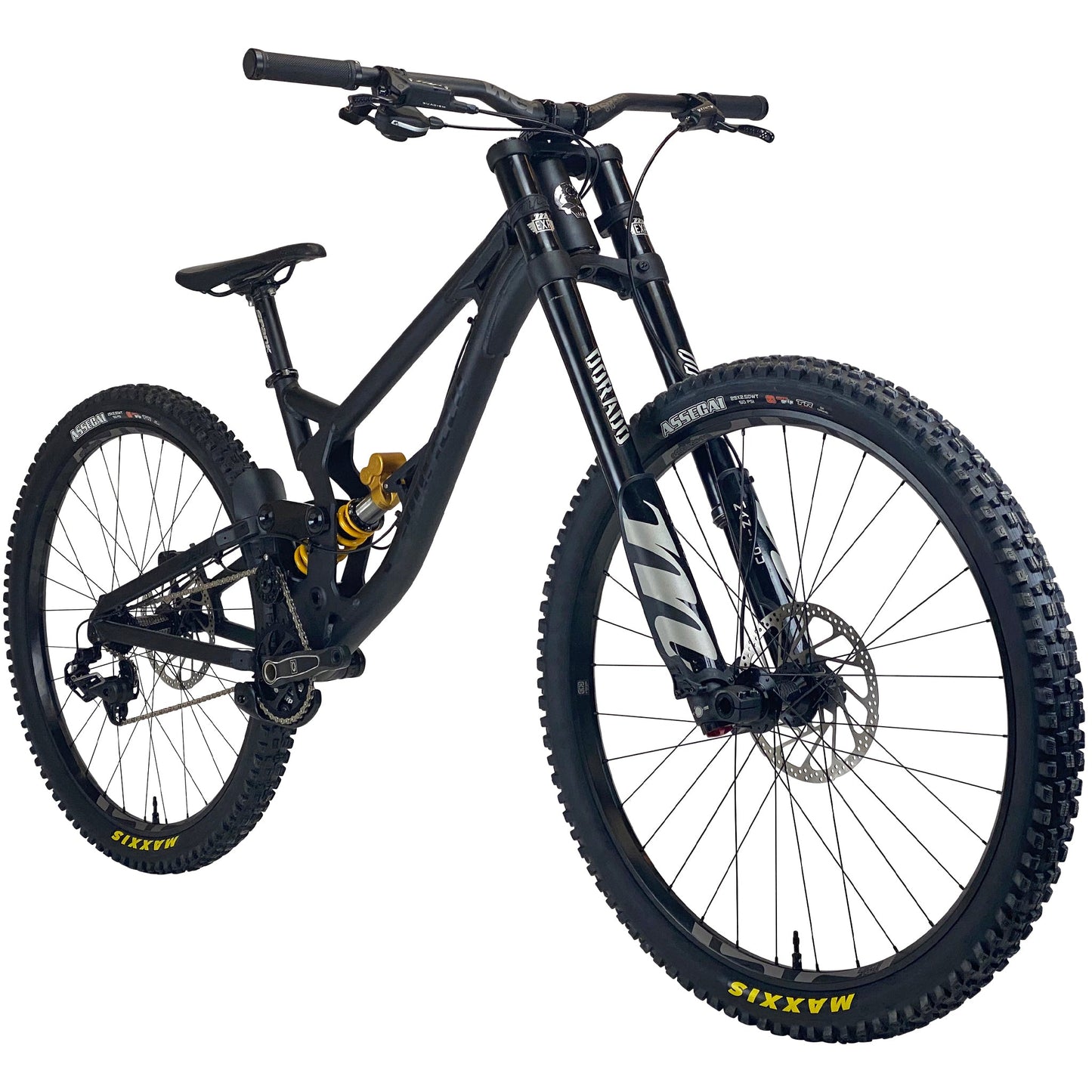

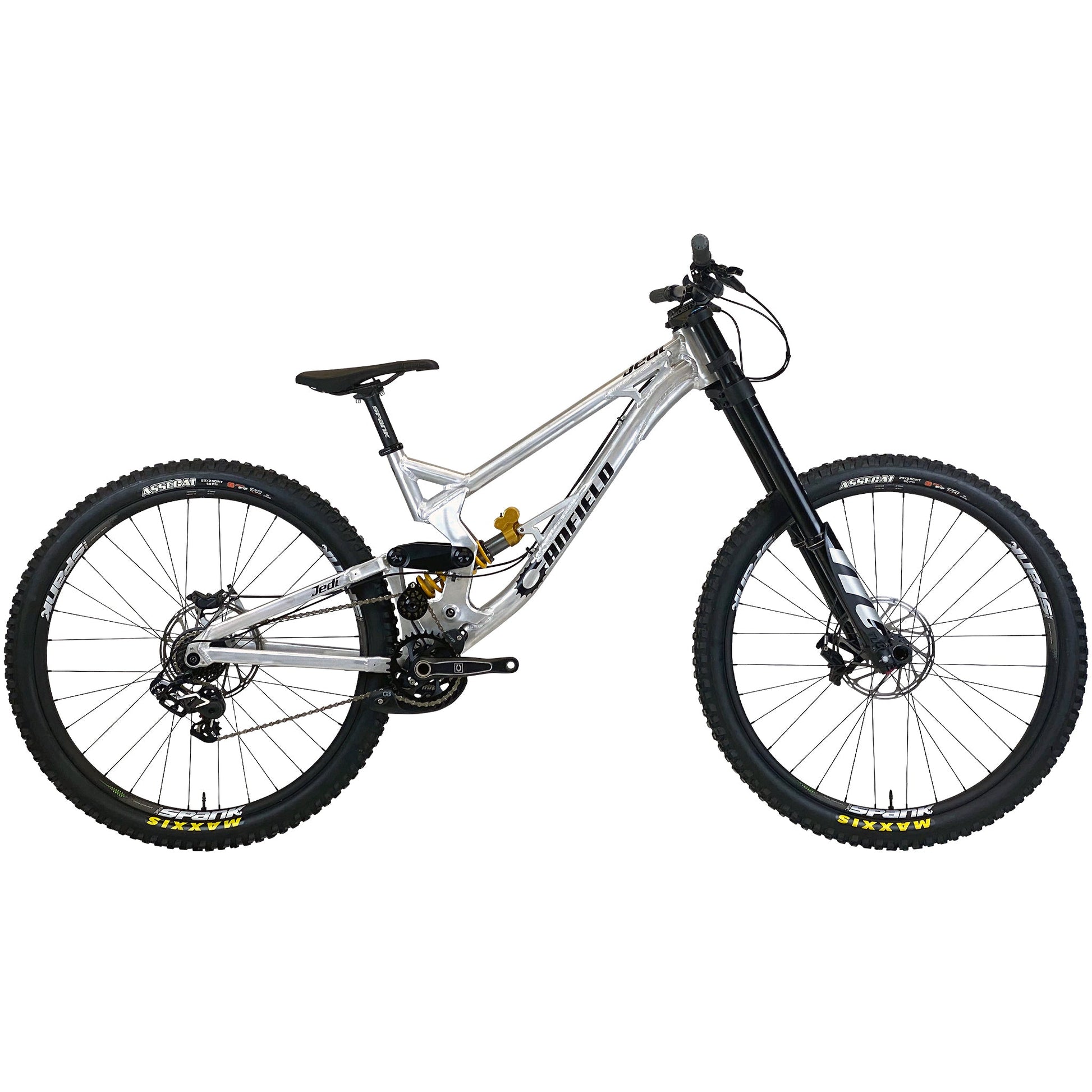

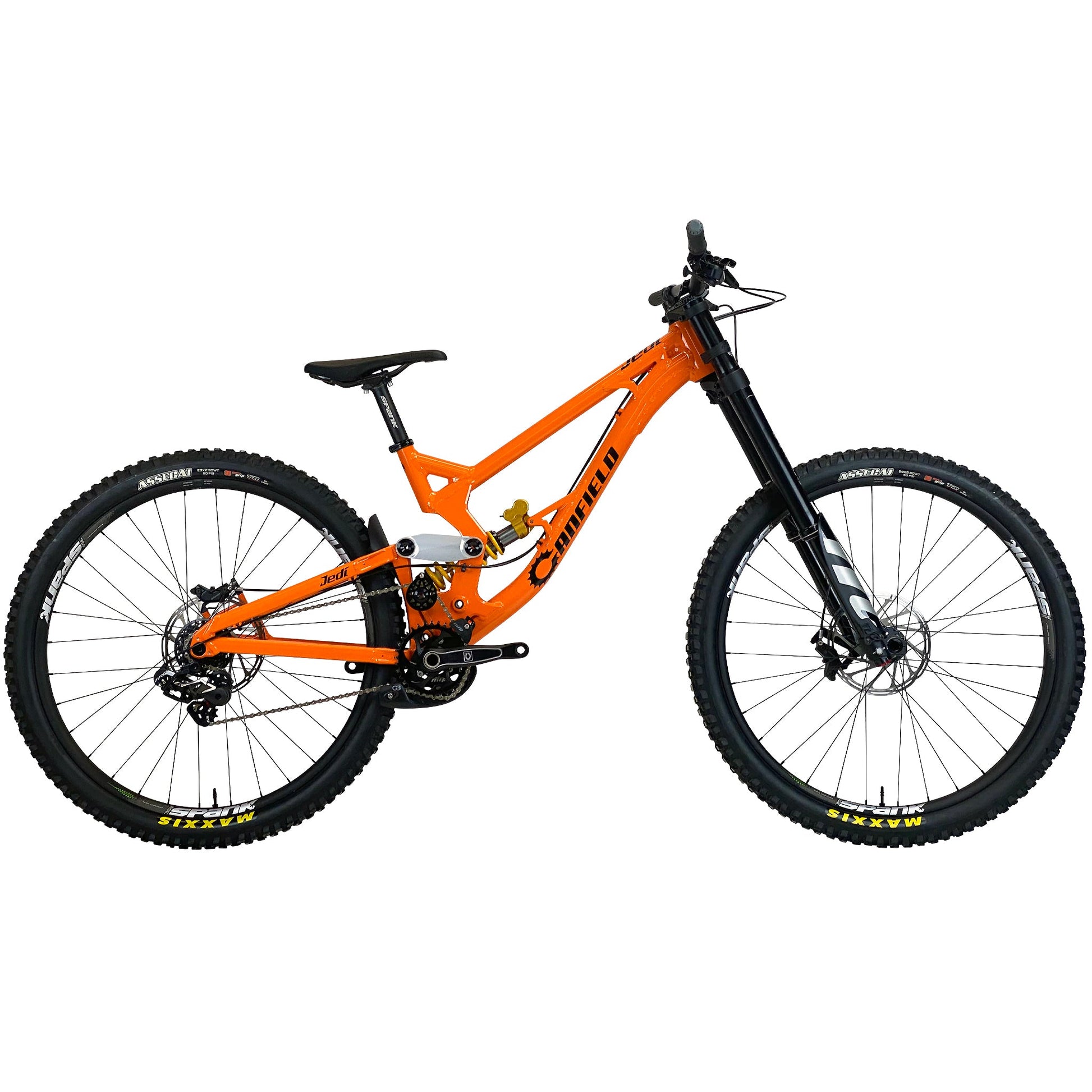

Canfield Jedi 29 - Complete Bike

29" WHEELS / 203mm REAR / 203mm FRONT

*PLEASE CONTACT US FOR AVAILABILITY*

Return of the legend. The Canfield Jedi 29. One of the most revered downhill bikes is back and faster than ever before. But big wheels are just the beginning. With a redesigned frame, linkage layout, and suspension kinematics, the all-new Jedi improves nearly every aspect of this iconic gravity machine.

NEW BUILD SPECS

JEDI	COMPONENT OPTIONS
Fork	Rockshox Boxxer ULT RC2 C3 200mm (Red or Black) FOX 40 Float 29 Grip 2 203mm (Orange or Black) EXT Vaia 200 (Special Order)
Shock	Rockshox Vivid Coil Ultimate DH RC2 FOX DHX2 250x75 EXT e-Storia LOK V3 (Special Order)
Drivetrain & Brakes	SRAM w/ XO1 Shifter, Derailleur, GX Cassette, TRP DH-R EVO w/203mm Rotors Shimano w/ Saint Shifter, Derailleur, Cassette, Brakes w/203mm Rotors
Cranks	Canfield Downhill Cranks
Chainring	e*thirteen 34t Round
Wheels	Spank/Hadley DH Custom Built Wheelset
Tires	Maxxis DHF 2.5 & Maxxis Assegai 2.5
Seatpost	Race Face Chester
Saddle	SDG Radar
Handlebar	e*thirteen Base 800mm
Stem	Canfield Special Blend DH
Seat Clamp	Canfield Black Forged
Chain Guide	MRP

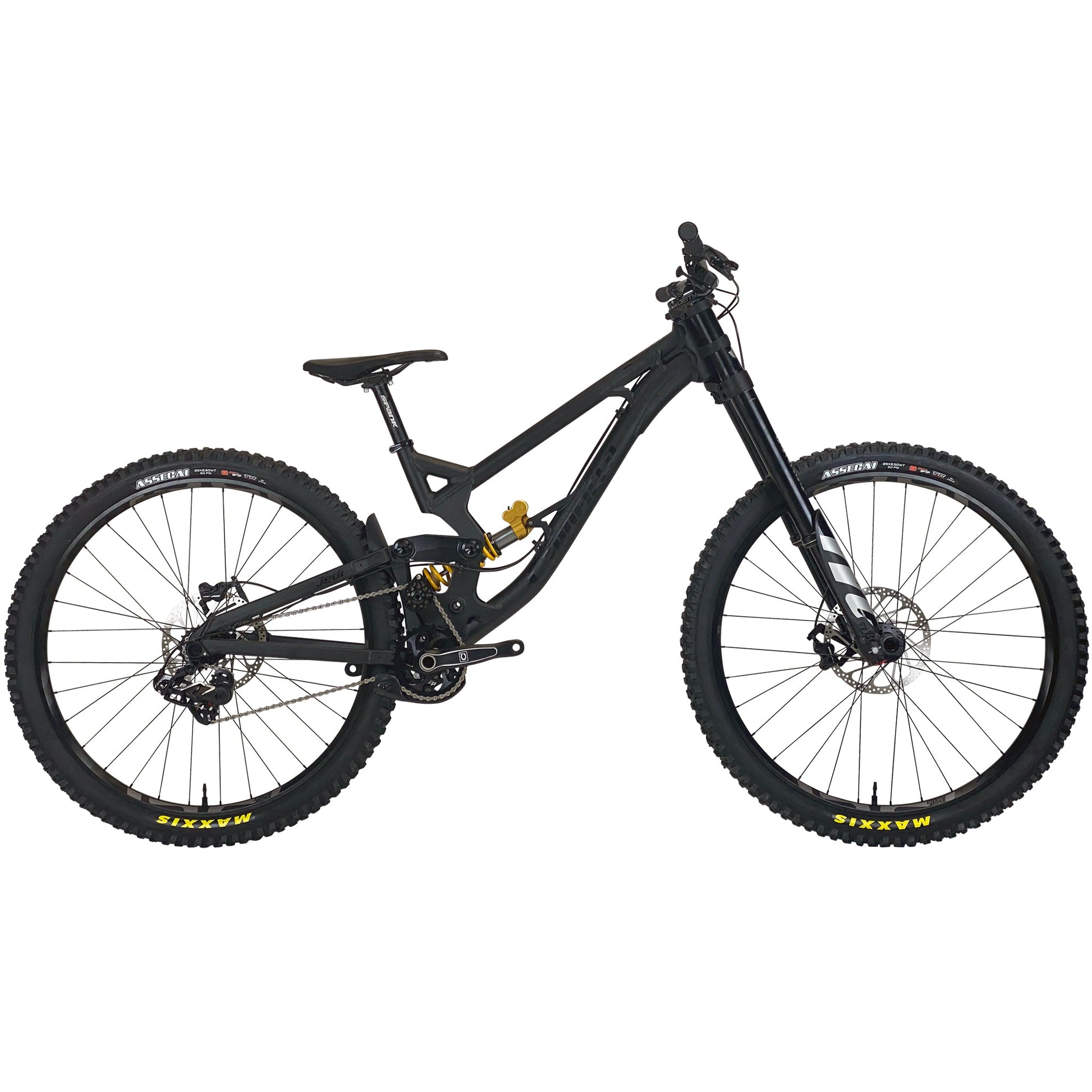

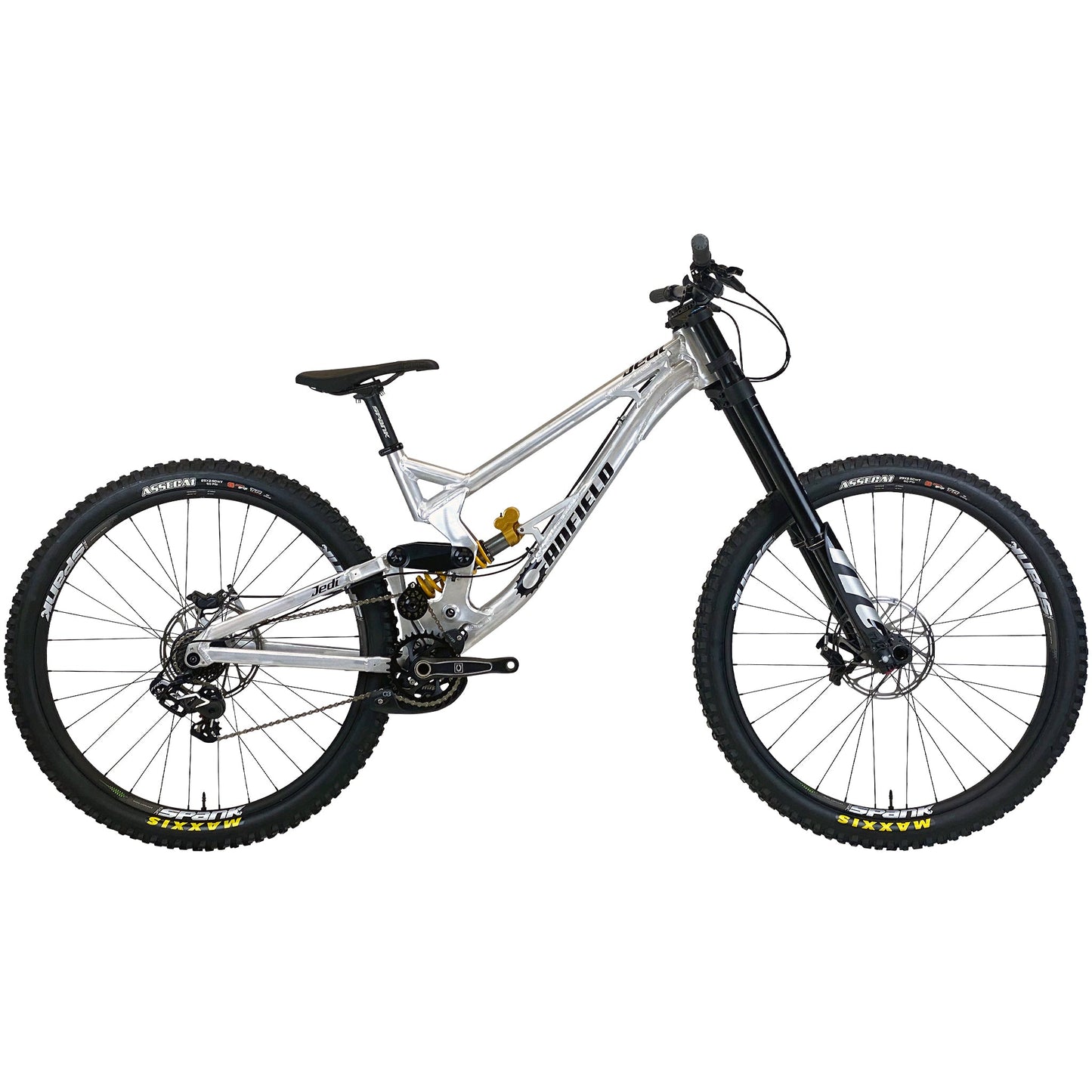

*Photos are for illustration purposes only. Actual build spec not pictured.
**Complete bikes ship as frame and parts. Full assembly required.

FEATURES

29” Downhill Race
Formula 1 Suspension
Vertical Rear Travel: 203mm / Horizontal Rear Travel: 19mm (horizontal) / 64mm (effective)

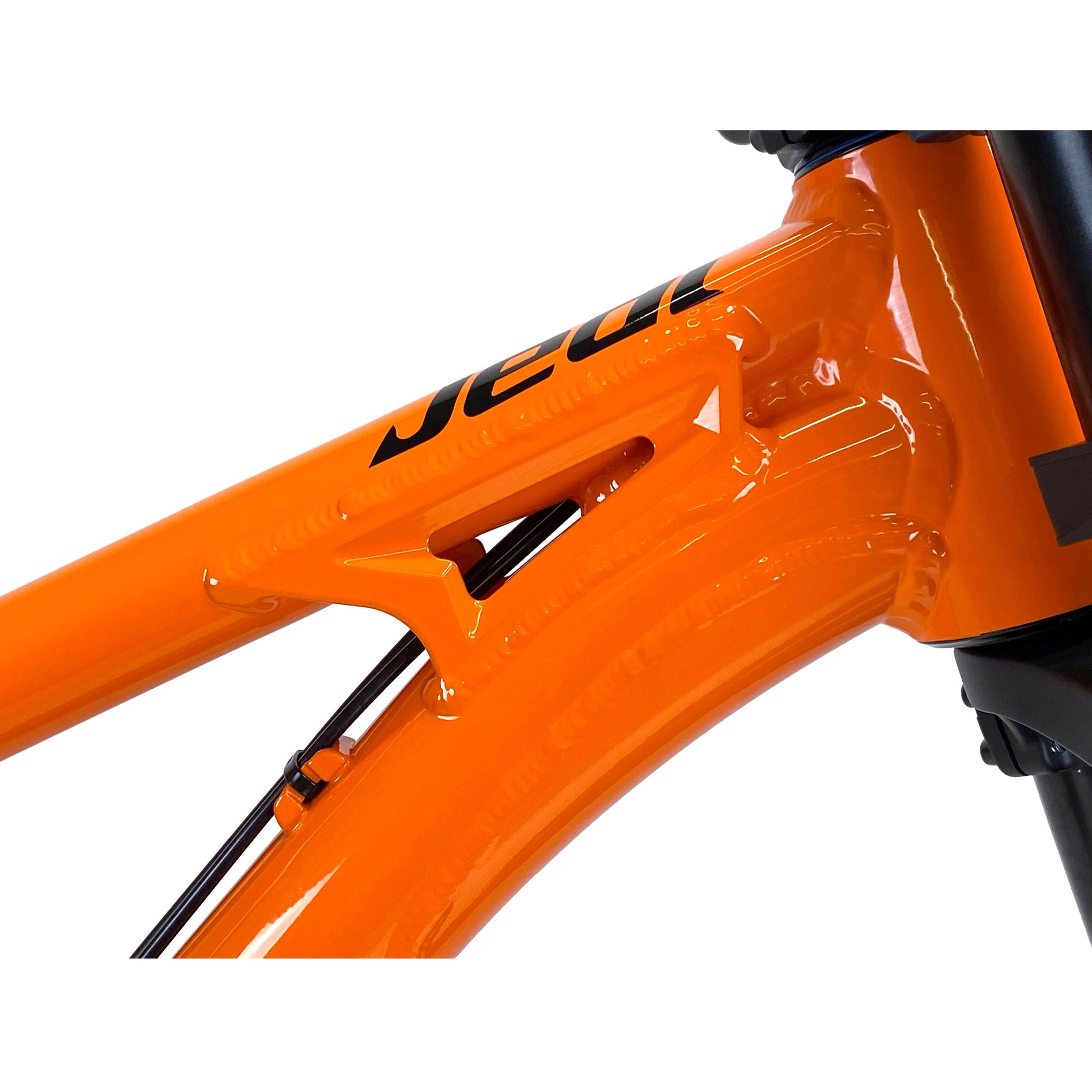

External cable routing

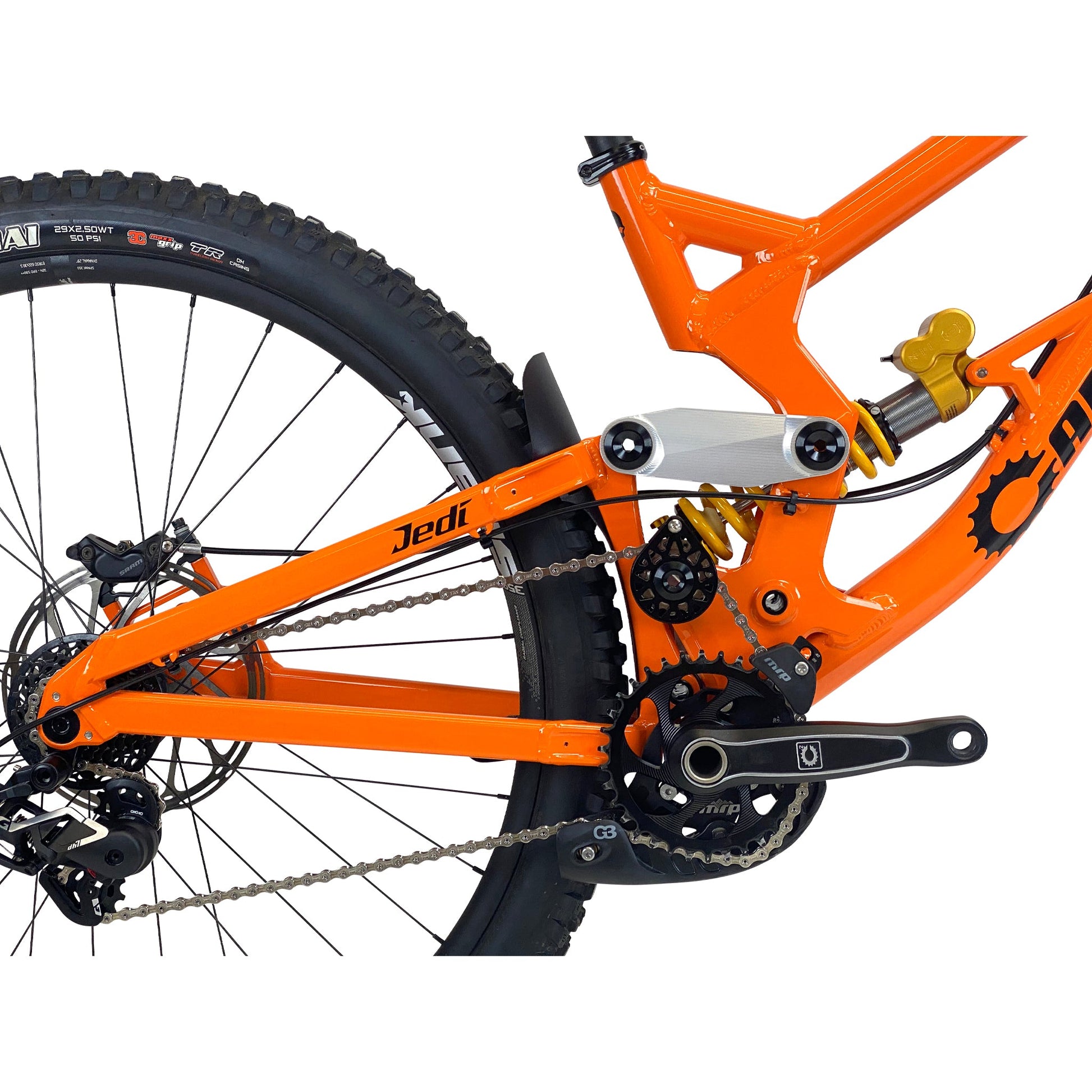

Adjustable pulley wheel guide for optimal chain management

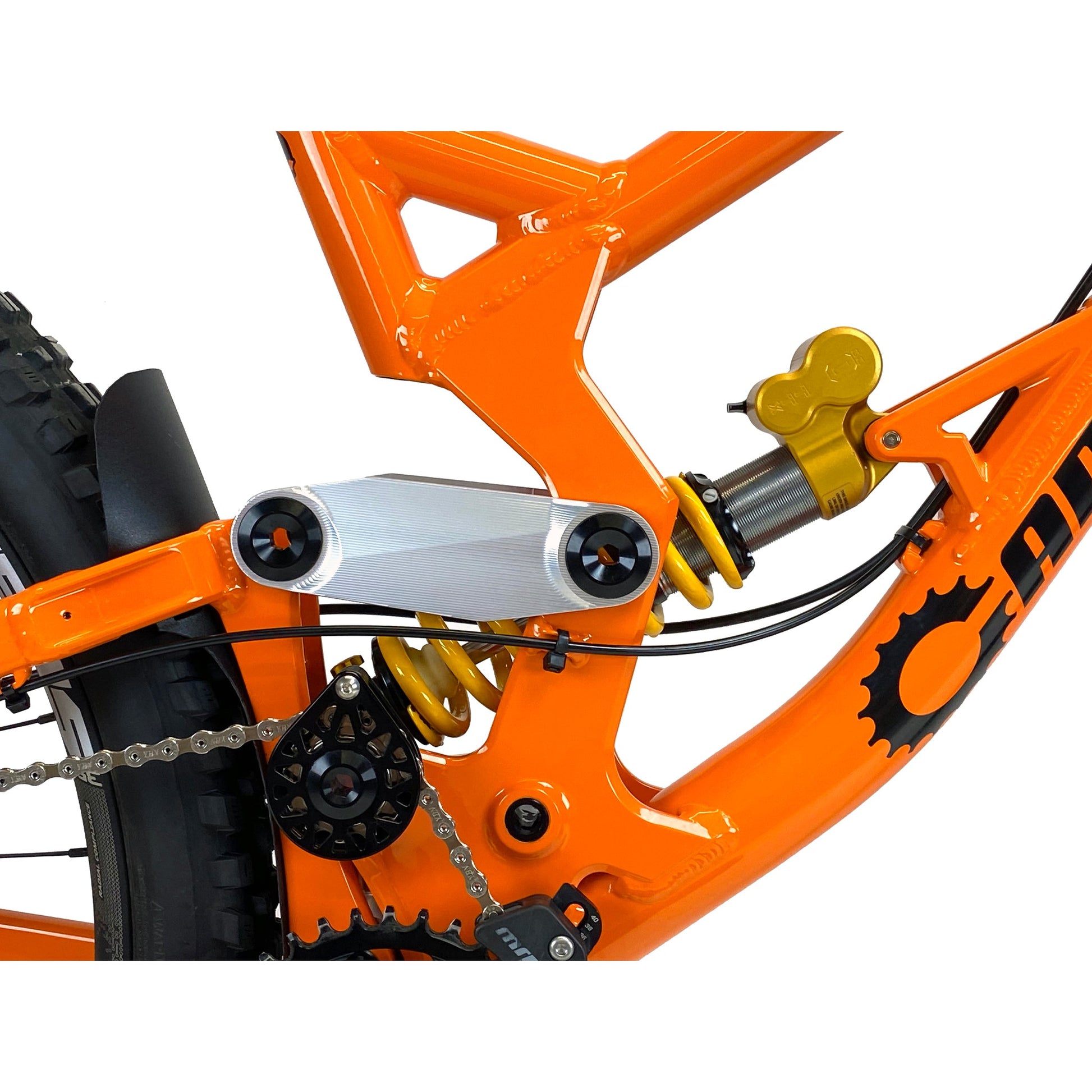

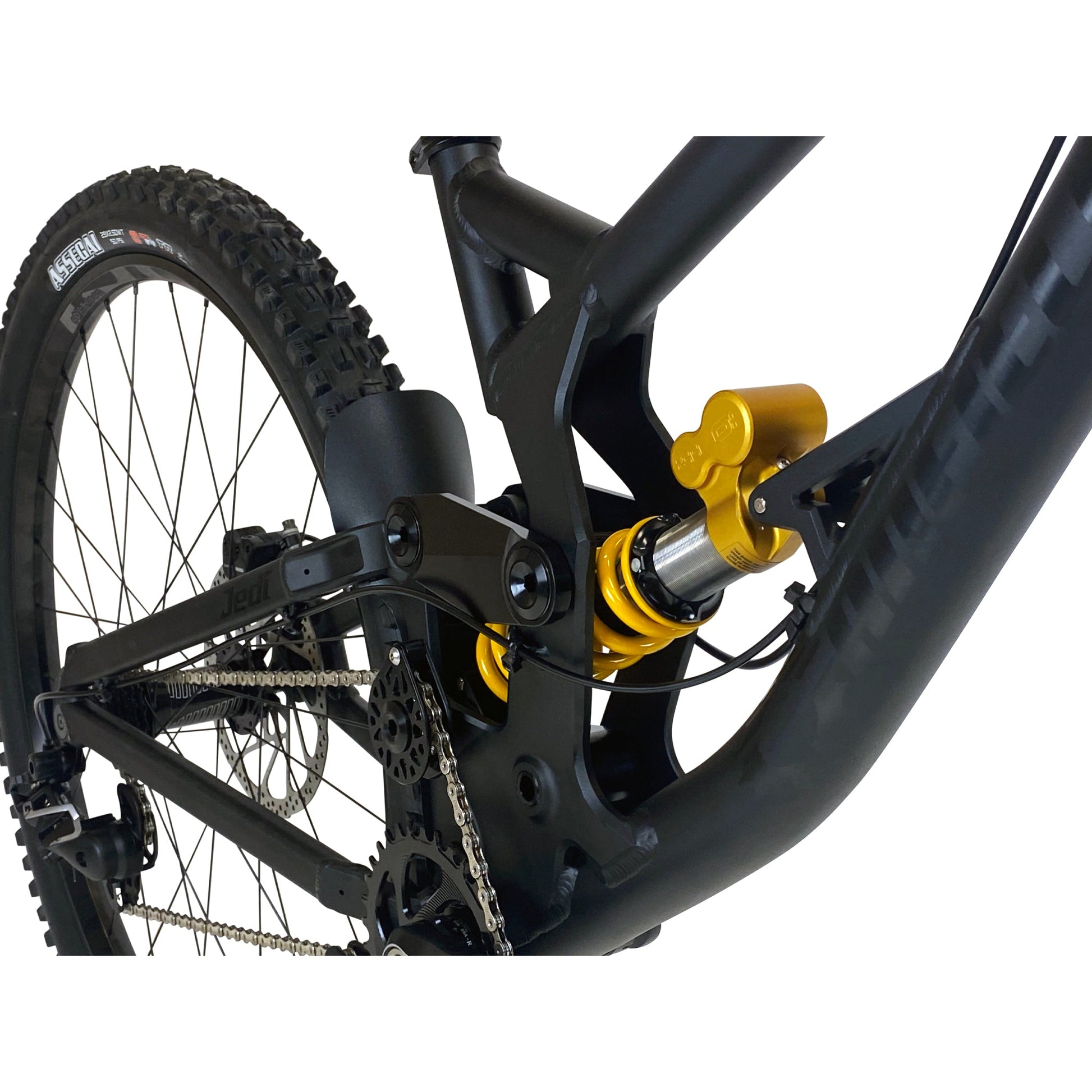

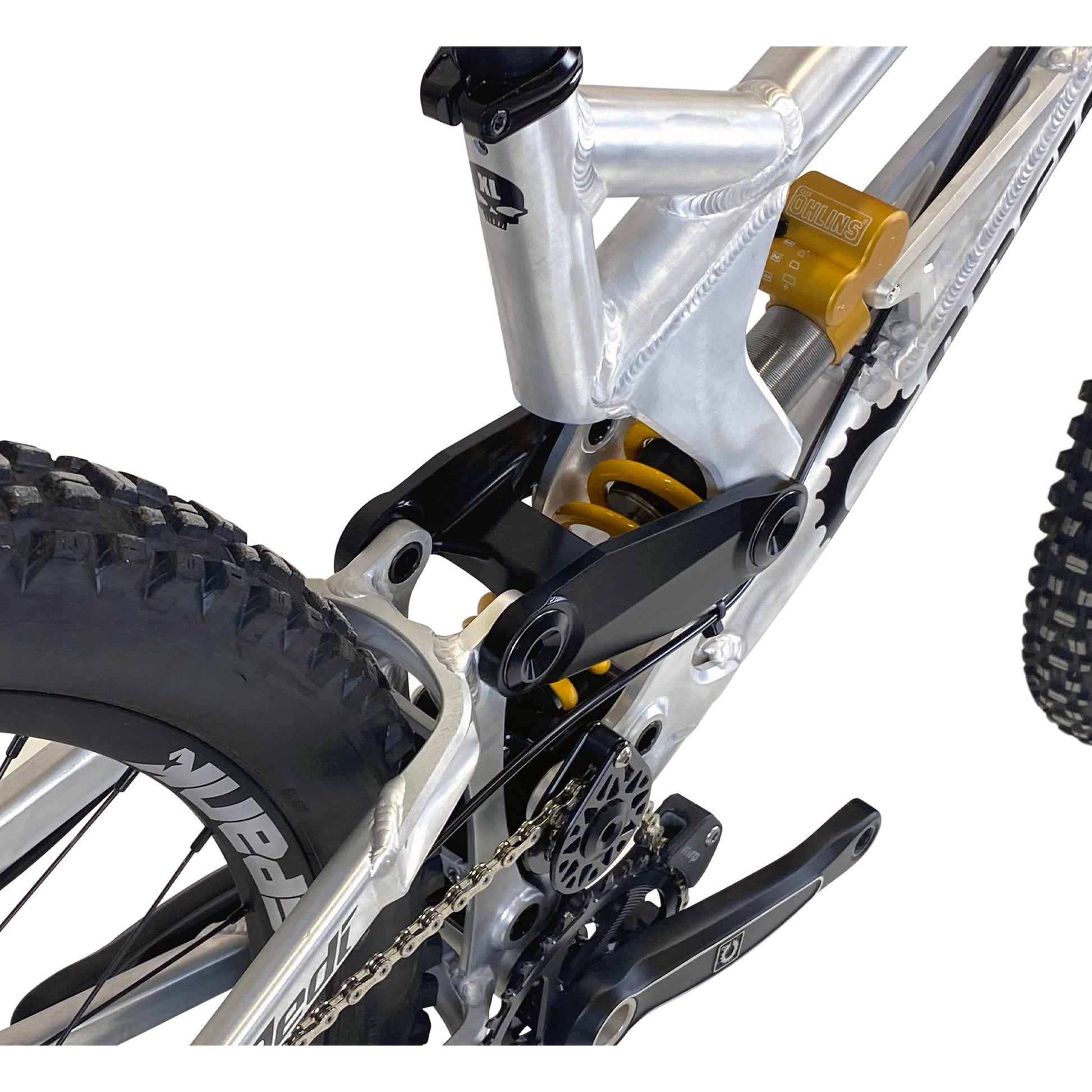

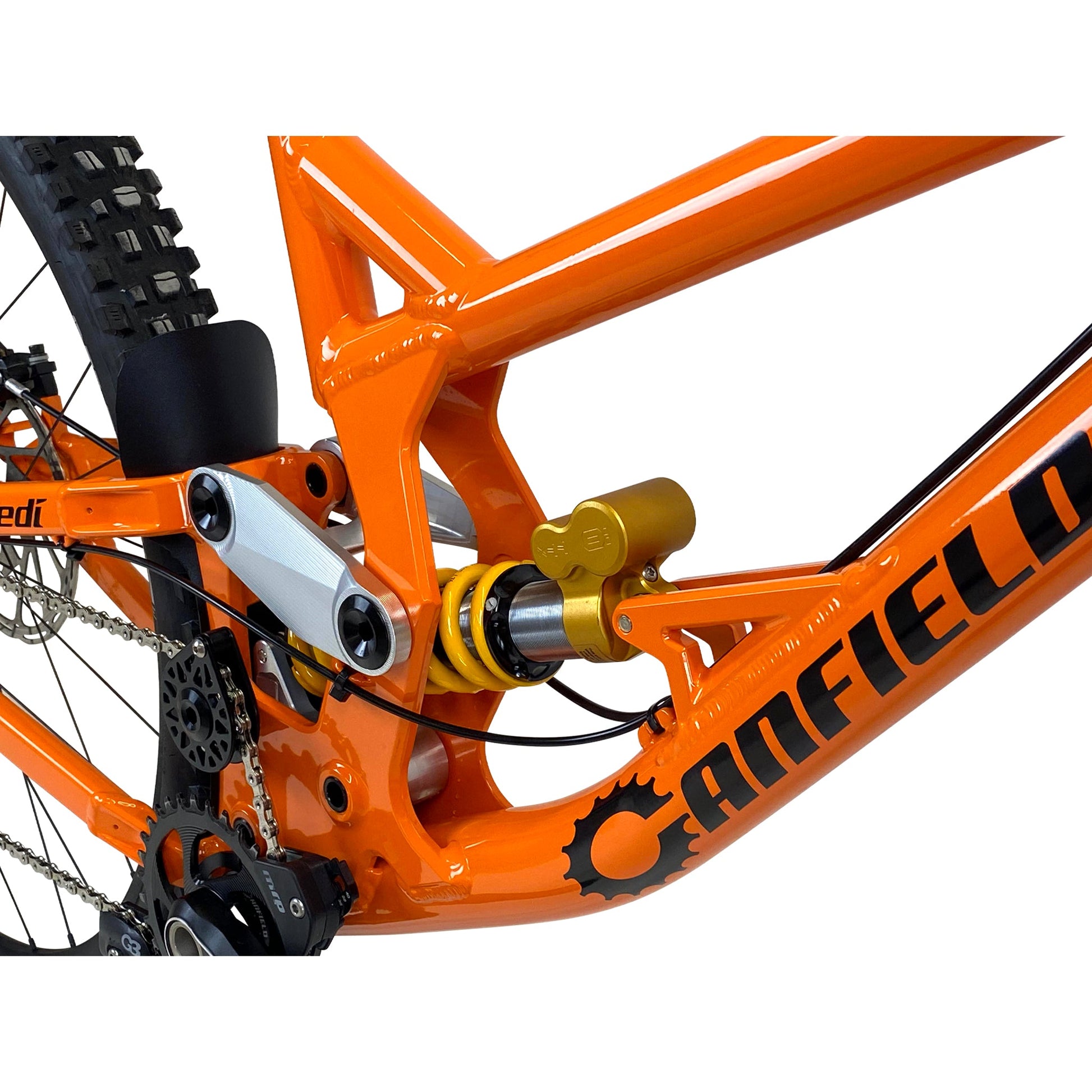

One-piece CNC upper and lower links
Custom chainstay protector (not shown)

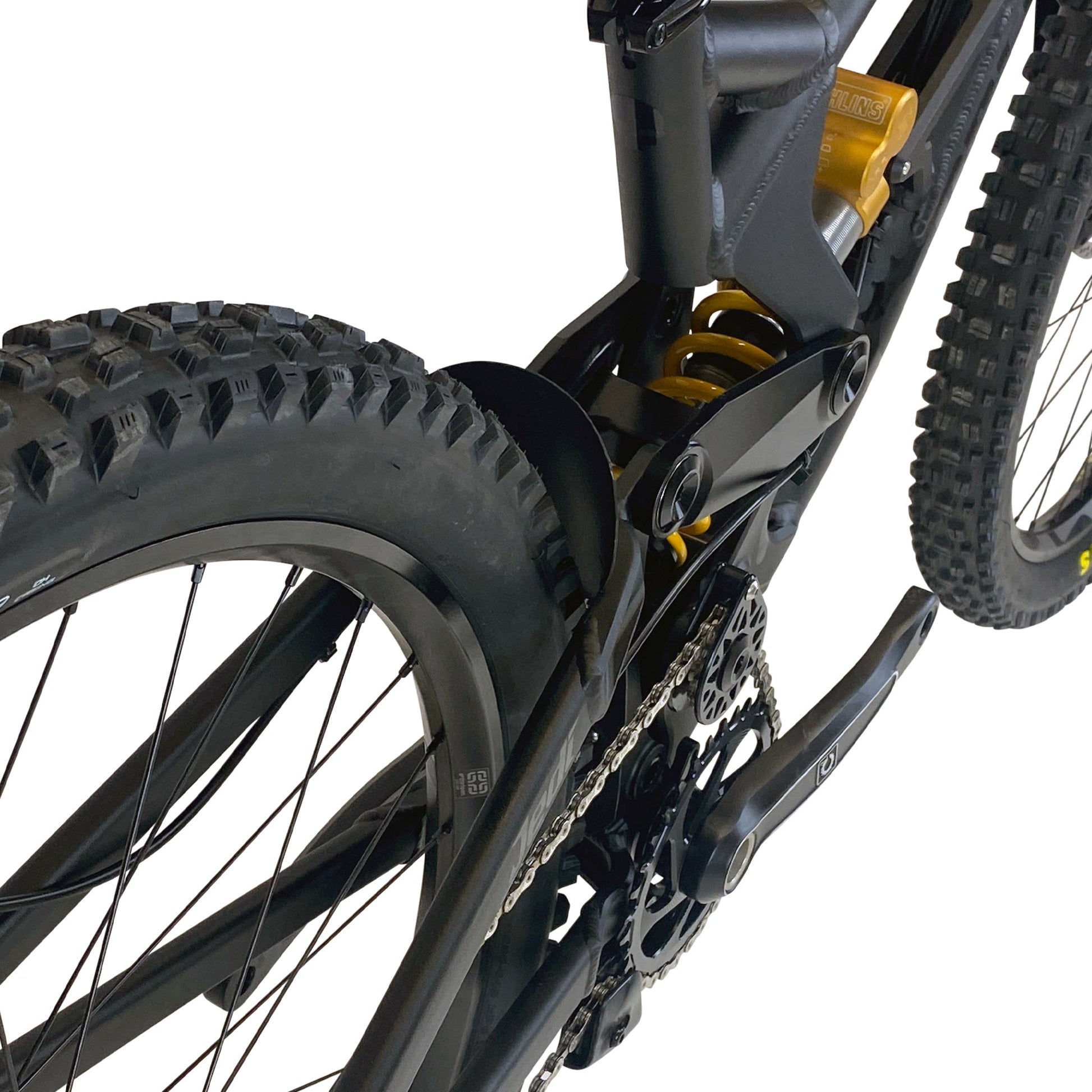

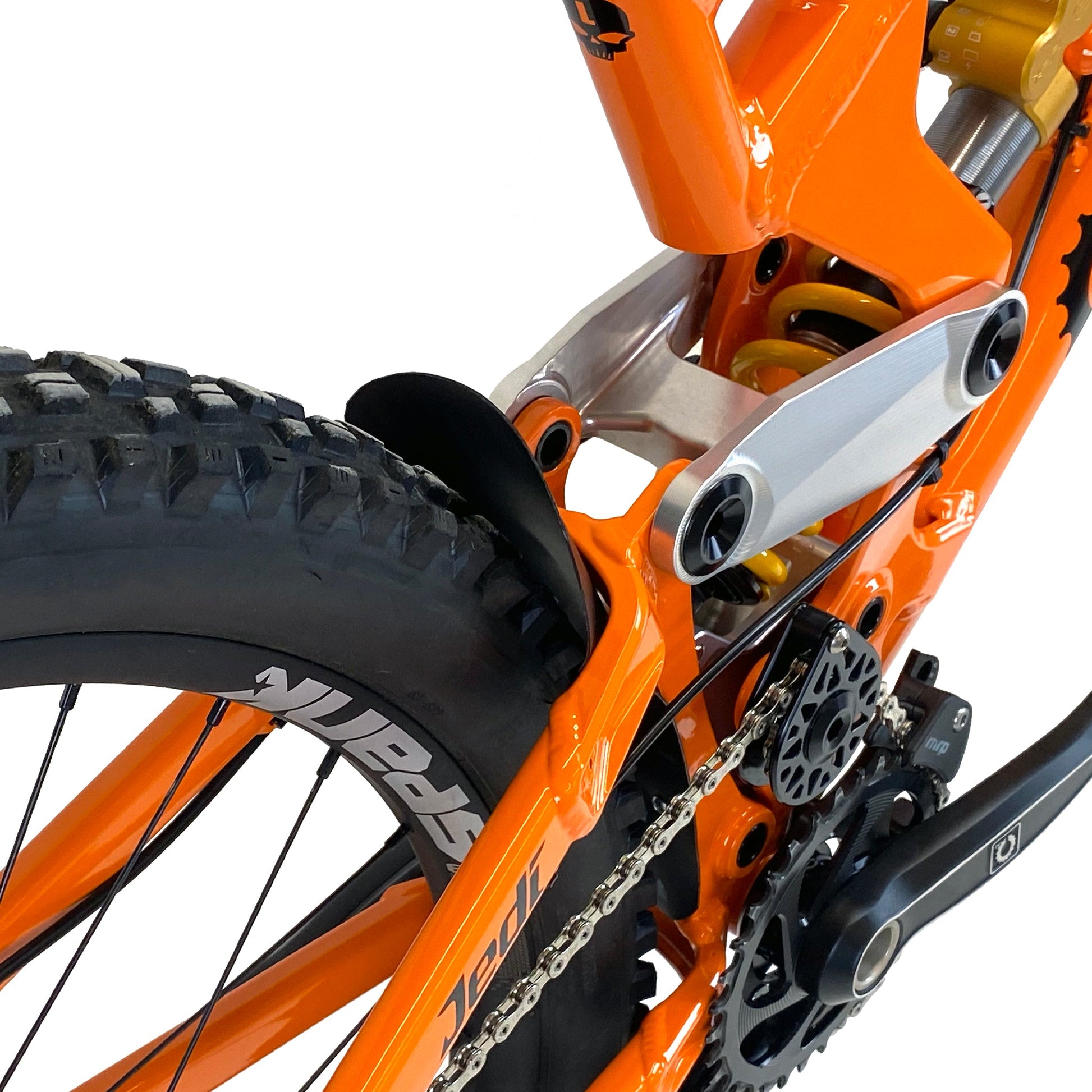

Custom removable rear fender (modifies most front fenders)
Custom MRP G5 bashguard
Replaceable rear derailleur hanger
Seat Clamp included
Available in Medium, Large, and X-Large

FRAME SPECS

7000 series aluminum
Shock Specs: Metric: 250mm x 75mm (203mm)
Recommended fork length: 200mm
Headset: 44mm upper/56mm lower
Bottom bracket: 83mm threaded
Max. chainring size: 38t
Crank Length: 155mm (MD), 160mm (LG), 165mm (XL)
Seatpost: 30.9mm
Seatpost clamp: 35mm
Rear dropouts: 157mm x 12mm, Canfield axle included
20mm Max pivot bearings
ISCG 05
Brake mount: PM 180mm
Max rotor size: 223mm +
Maximum seatpost insertion: 133mm (M), 143mm (L), 153mm (XL)

GEO & SIZING

SIZE	MEDIUM	LARGE	XL
Top Tube Length (Effective)	610mm	636mm	661mm
Reach	450mm	475mm	500mm
Front Center	825mm	852mm	877mm
Stack	640mm	644mm	644mm
Standover	711mm	711mm	711mm
Wheel Base	1,252mm	1,279mm	1,304mm
Head Tube Angle*	62.5°	62.5°	62.5°
Head Tube Length	115mm	120mm	120mm
Seat Tube Angle (Effective)	76°	76°	76°
Seat Tube Angle (Actual)	67°	67°	67°
Seat Tube Length	405mm	405mm	405mm
Chainstay Length (unsagged)	427mm	427mm	427mm
Chainstay Length (sagged)	443mm	443mm	443mm
Bottom Bracket Height (Approximate)**	351mm	351mm	351mm
Bottom Bracket Drop	24mm	24mm	24mm
Rider Height***	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*Geo based on 601mm axle-to-crown fork
**Based on 2.5 tires and 601mm axle-to-crown fork
***Recommendation only. Sizing depends on body type, personal preference, and riding style.
