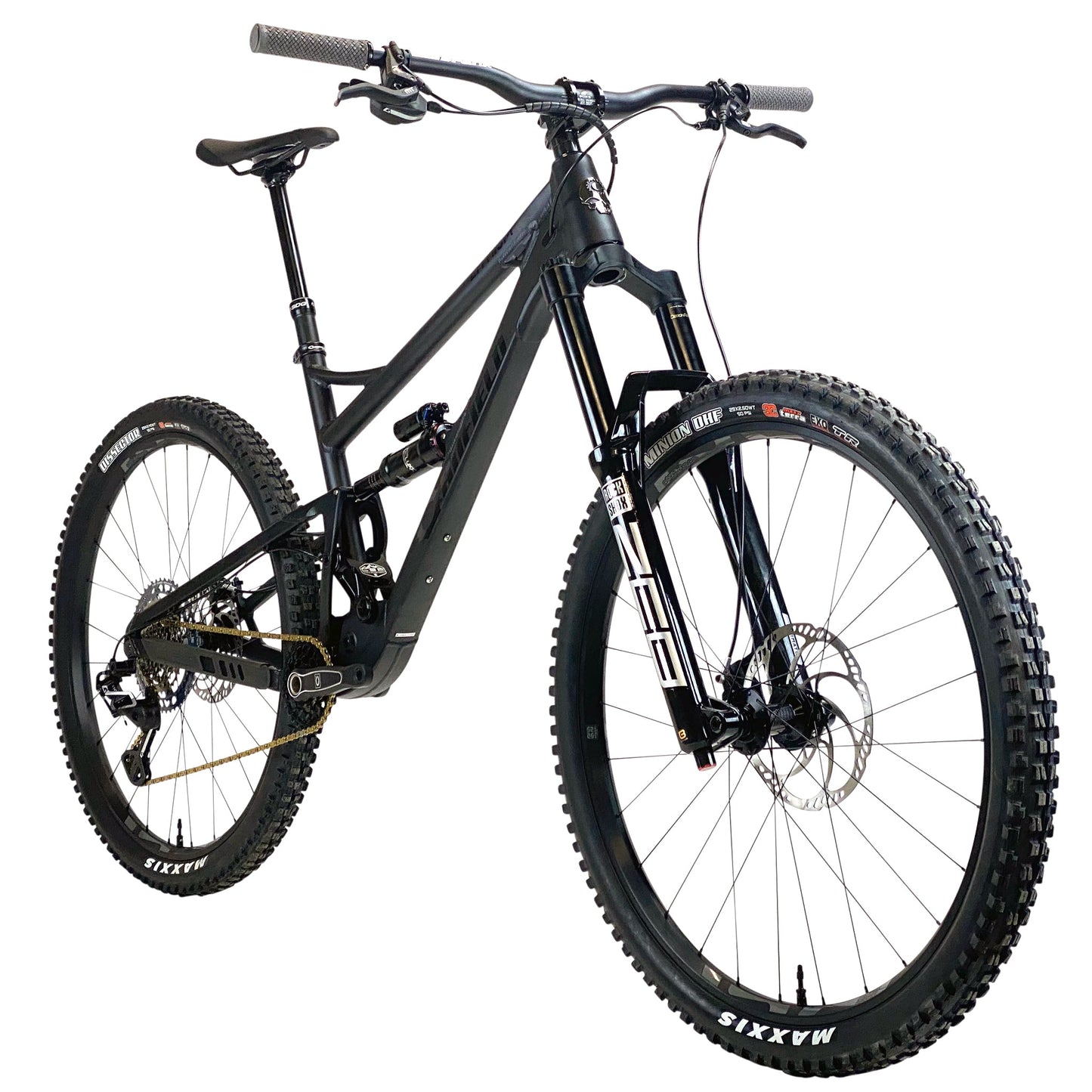

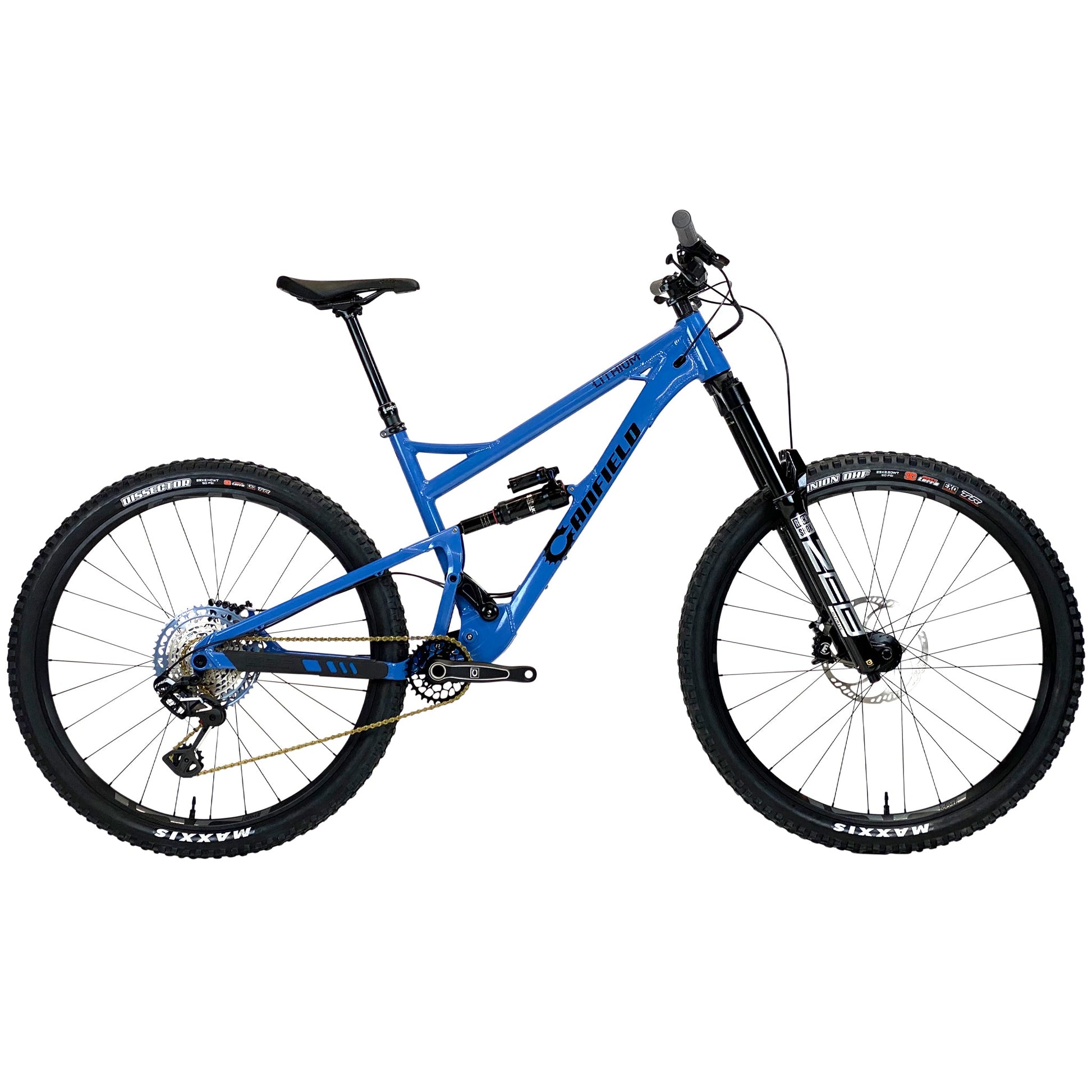

Canfield Lithium - Complete Bike

$5,817.00 SGD

Sale Sold out

Size Small Medium Large Extra Large

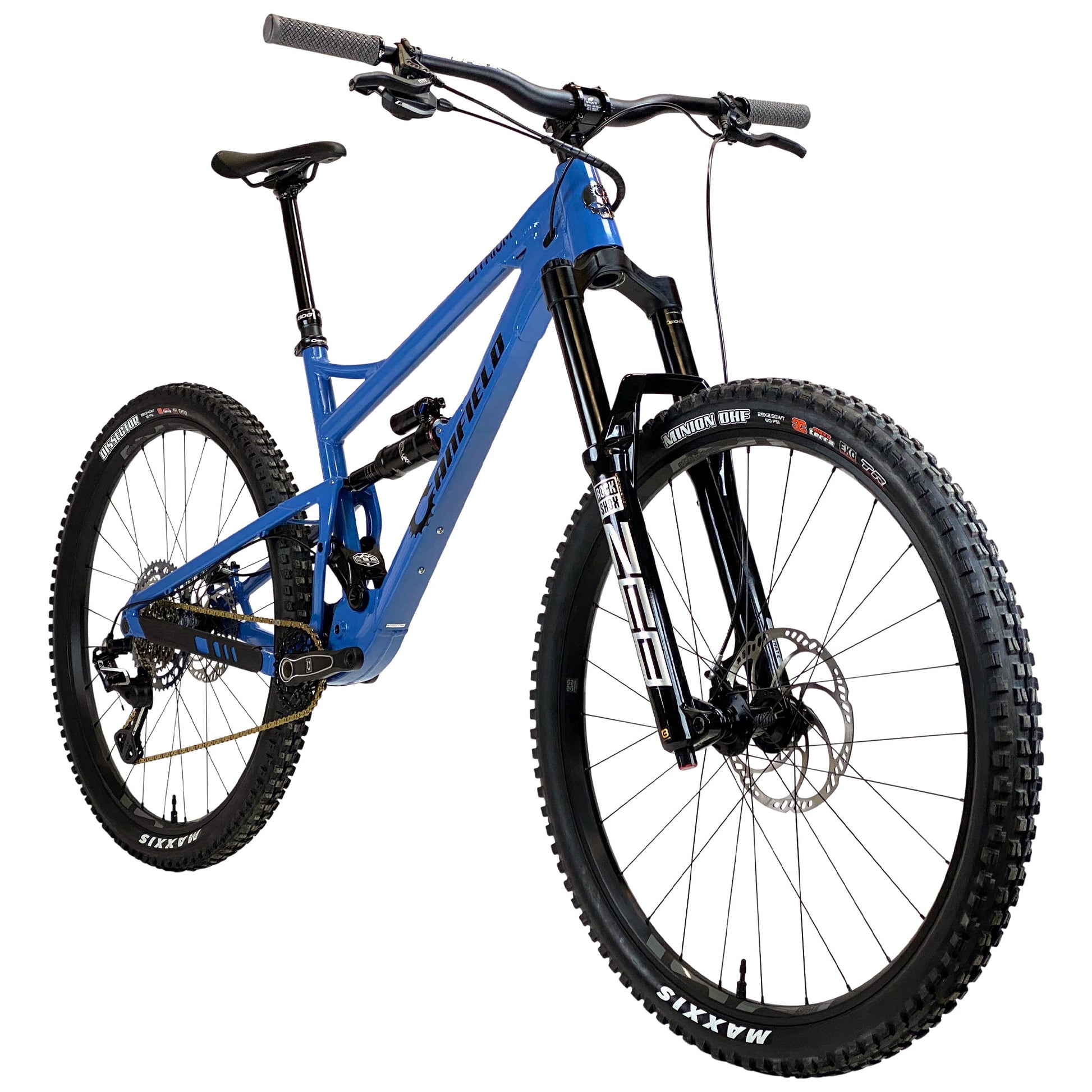

Color: Blue Velvet

Build Fox Factory Float X2 + 38 Factory Grip 2 170 + SRAM GX Fox Factory Float X2 + 38 Factory Grip 2 170 + SRAM XO Fox Factory Float X2 + 38 Factory Grip 2 170 + Shimano XT RockShox Vivid ULT Coil + Zeb ULT Chg 3 + SRAM GX RockShox Vivid ULT Coil + Zeb ULT Chg 3 + SRAM XO RockShox Vivid ULT Coil + Zeb ULT Chg 3 + Shimano XT

Quantity

29" WHEELS // 163mm REAR // 170mm FRONT

*PLEASE CONTACT US FOR AVAILABILITY*

Introducing the newest beast of the mountain. Built to conquer massive descents with fearless intensity, the Lithium thrives on the climb just as much as the ride down. Whether it's enduro races, bike park sessions, or untamed backcountry trails, this big-wheeled machine is primed for whatever challenge the mountain delivers.

LITHIUM	COMPONENT OPTIONS
Fork	Fox 38 Factory Grip 2 170mm RockShox Zeb ULT Charger 3 A2 170mm
Shock	Fox FACTORY Float X2 Air RockShox Vivid ULT Coil
Drivetrain	SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t Cassette SRAM X01 Eagle Shifter, Derailleur, 10-52t Cassette Shimano XT Shifter, Derailleur, e13 Helix-R 9-50t Cassette
Cranks	Canfield All Mountain Cranks (165mm length)
Chainring	e*thirteen 32t Round
Brakeset	TRP Trail EVO w/203/180mm Rotors
Wheels	e*thirteen LG1+ Enduro
Tires	Maxxis DHF 2.5 & Maxxis Dissector 2.4
Seatpost	SDG Tellis
Saddle	SDG Canfield Limited Edition
Handlebar	e*thirteen Base 800mm
Stem	Canfield Special Blend AM
Seat Clamp	Canfield Black Forged

Complete builds may take 7-10 days to ship depending on in-stock inventory and parts availability.

GEO & SIZING	SMALL	MEDIUM	LARGE	XL
Top Tube Length (Effective)	575	601	628	655
Reach	425	450	475	500
Front Center	764	791	818	845
Stack	635	640	644	649
Standover	702	739	770	782
Wheel Base	1193	1221	1248	1275
Head Tube Angle*	64.5°	64.5°	64.5°	64.5°
Head Tube Length	110	115	120	125
Seat Tube Angle (Effective)	76.7°	76.7°	76.7°	76.7°
Seat Tube Angle (Actual)	69.1°	69.1°	69.1°	69.1°
Seat Tube Length	380	420	460	490
Chainstay Length	430	430	430	430
Bottom Bracket Height (Approx.)**	350	350	350	350
Bottom Bracket Drop	28	28	28	28
Rider Height***	5'2" - 5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*Geo based on 582 axle to crown fork (170mm)

**Based on 2.5 tires and 582 axle to crown fork (170mm)

***Recommendation only. Sizing depends on body type, personal preference and riding style.

Seat Height vs. Effective Seat Tube Angle

600mm = 77.43 °

700mm = 76.23 °

800mm = 75.33 °

FEATURES
• 29” All-Mountain/Enduro
• Patented Canfield Balance Formula™ Suspension

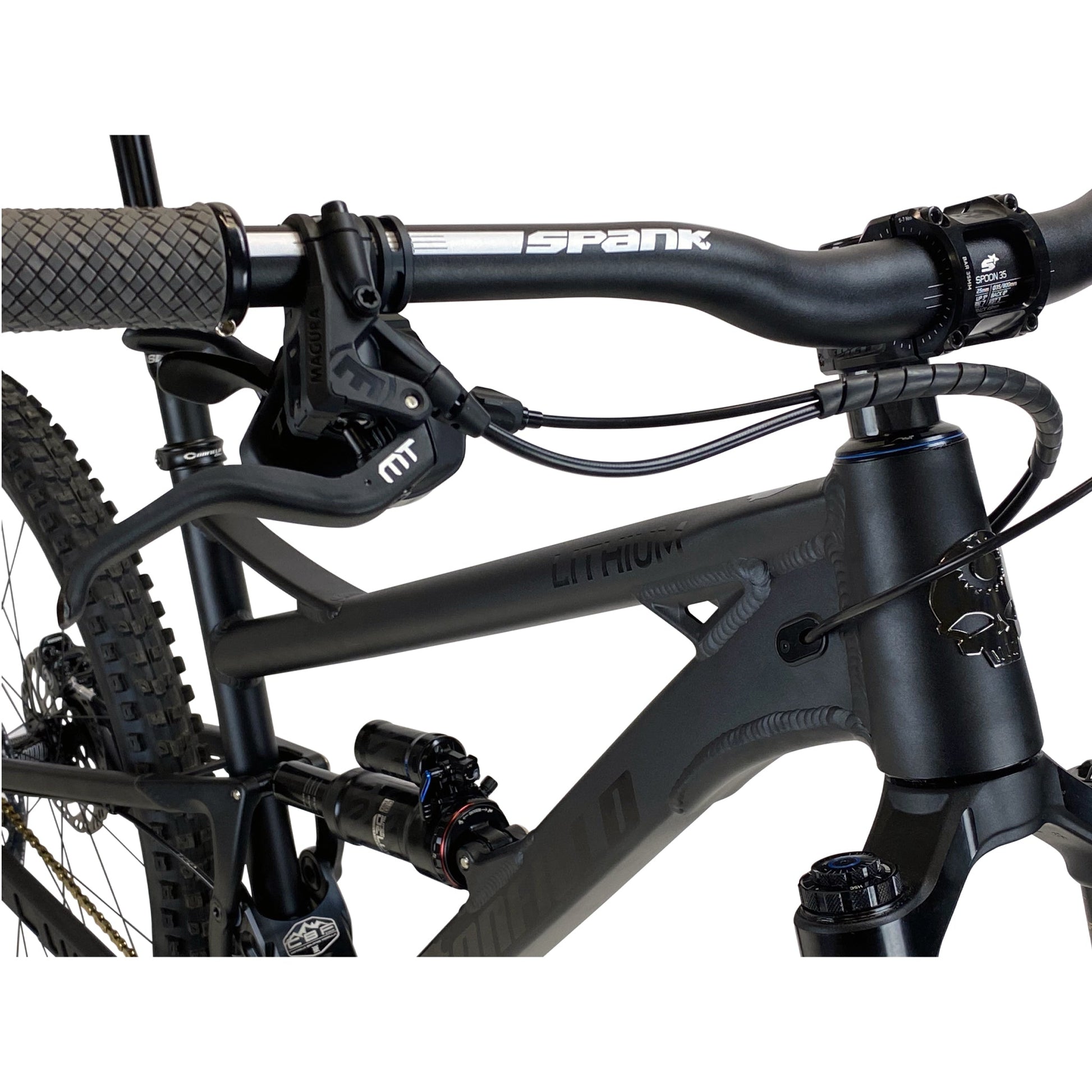

• Internal cable routing

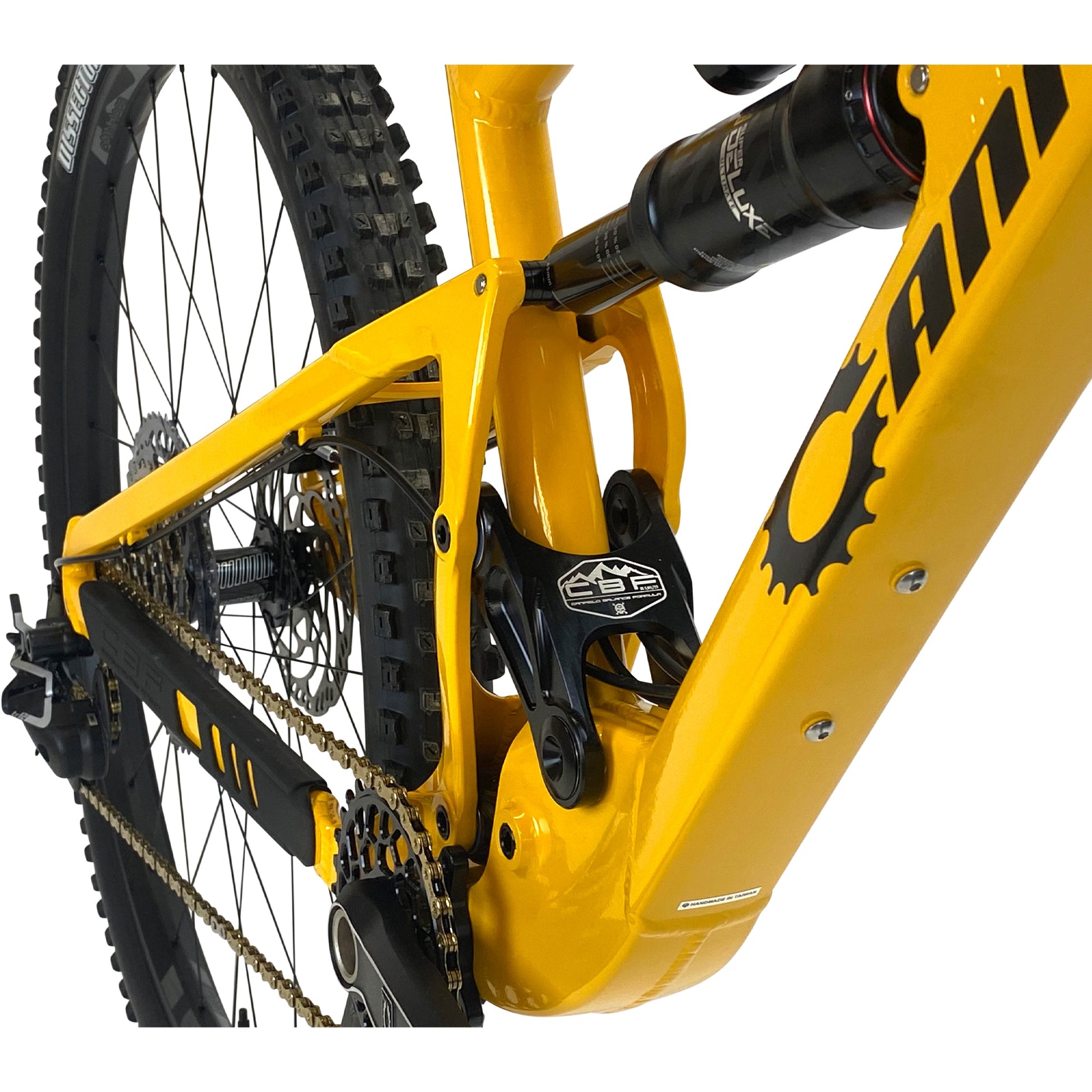

• Forged clamshell bottom bracket assembly

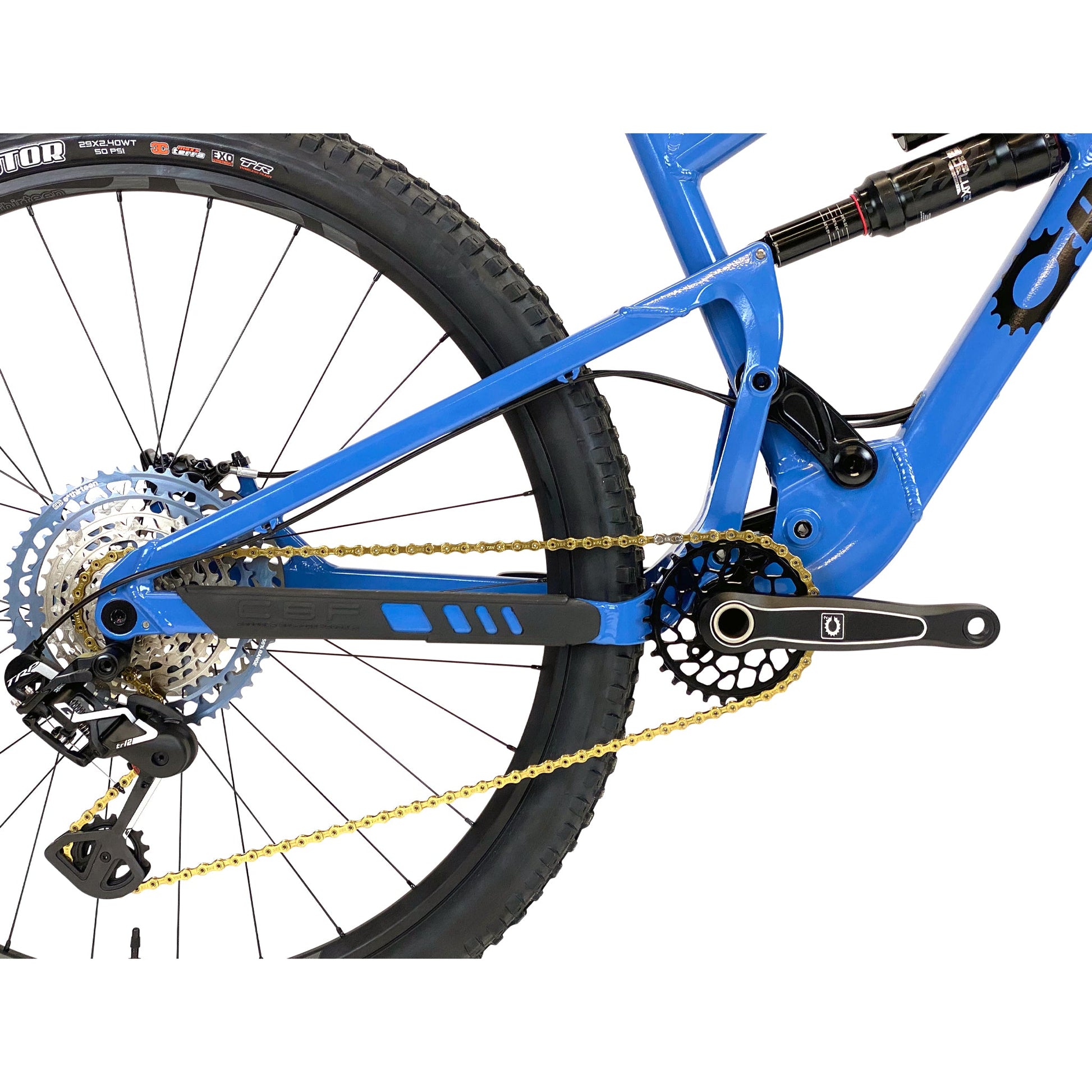

• Redesigned rear-triangle with forged one-piece vertical stays
• One-piece upper and lower links
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
• Available in Small, Medium, Large and X-Large

FRAME SPECS
• 7005 aluminum with CNC 7075 links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-163mm travel: 230mm x 65mm, (20mmX8mm/40mmX8mm hardware)
• Optimized for air or coil shocks
• Recommend fork length: 160mm – 180mm
• Recommended fork offset: 44mm

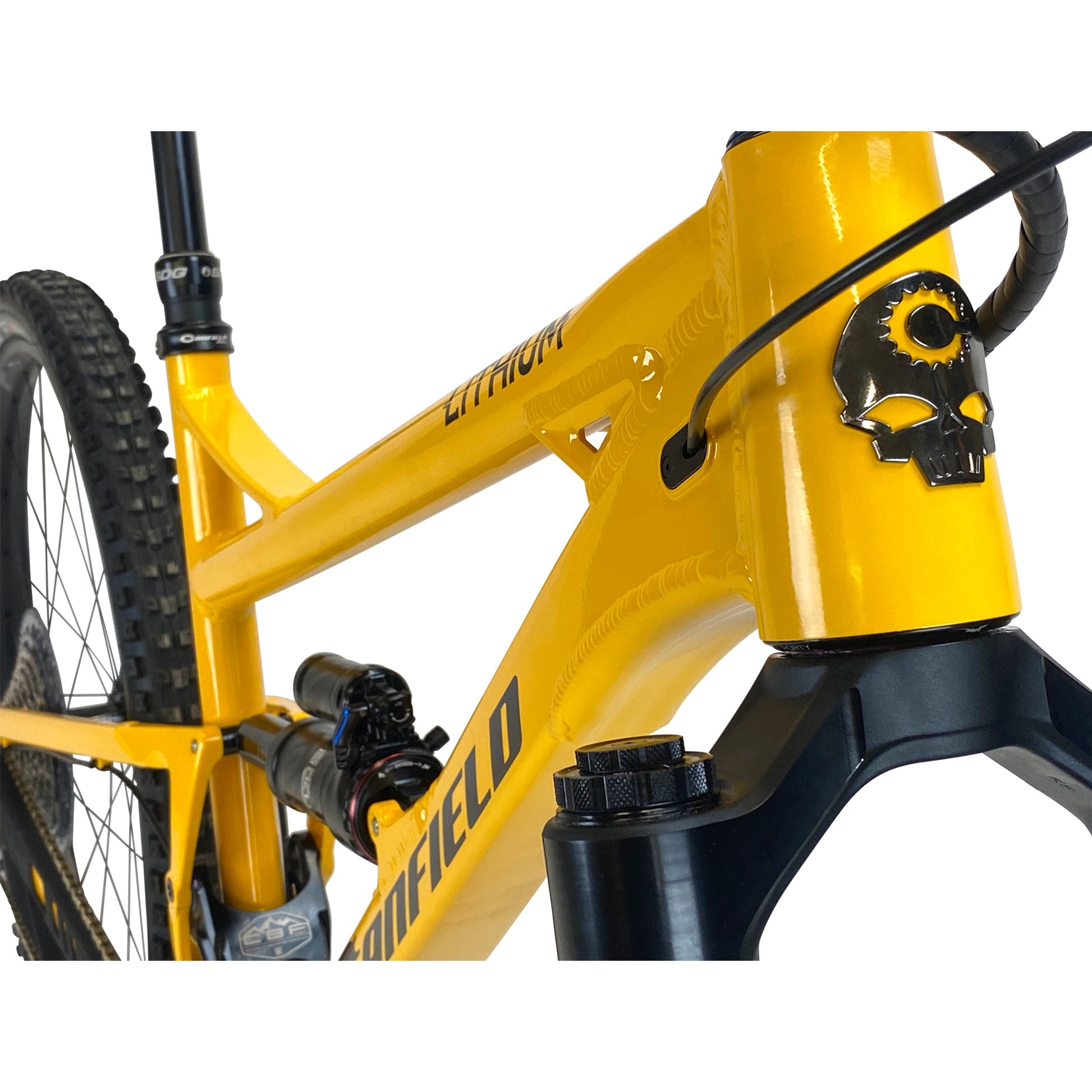

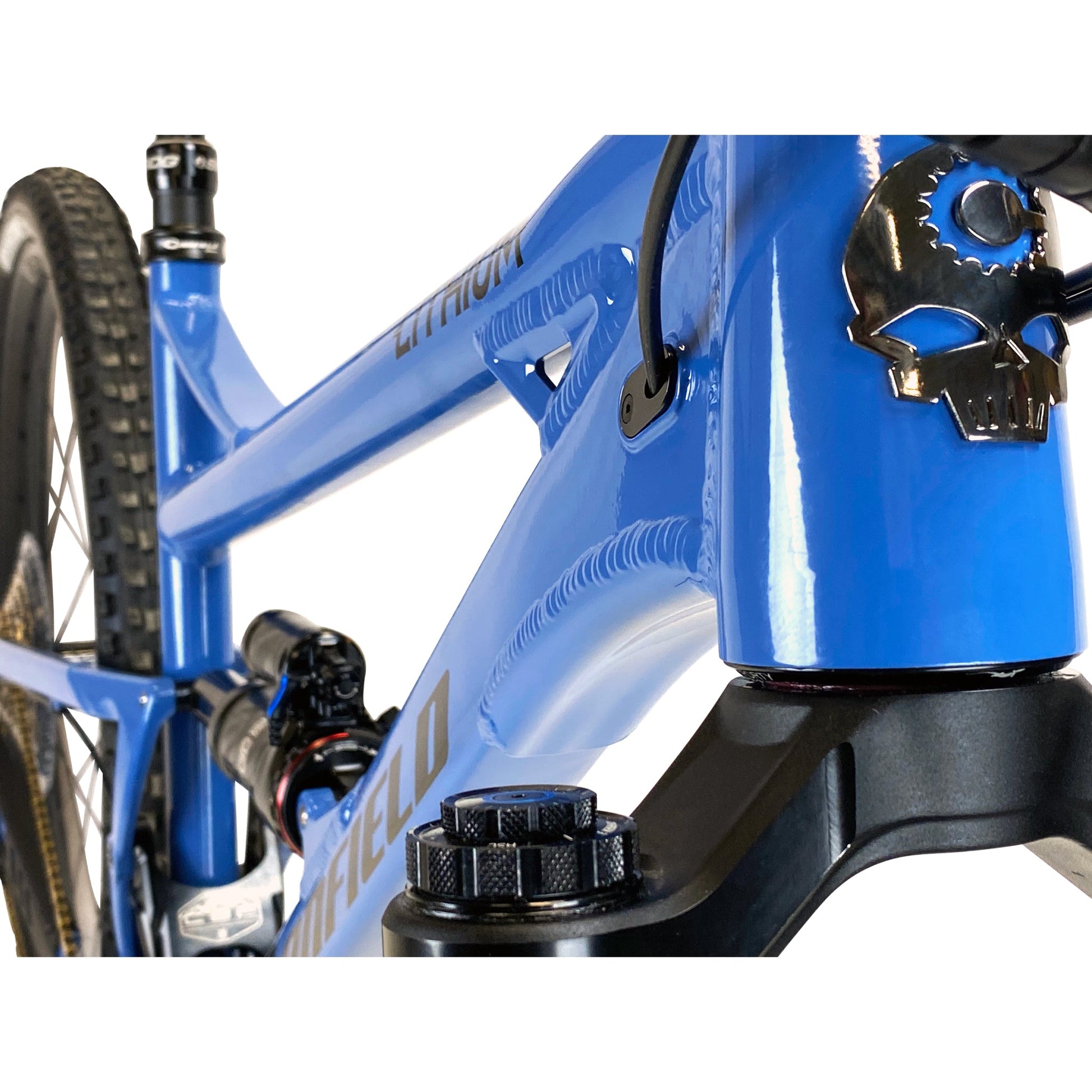

• Tapered Headtube 44mm upper/56mm lower
• 15mm pivot bearings (6902 Max)
• Bottom bracket: 73mm, BSA threaded
• Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.7 pounds
-Frame w/ shock: 8.8 pounds
-Complete (carbon wheels, air shock): 31.8 pounds
-Complete (aluminum wheels, coil shock): 33 pounds

LITHIUM COIL SPRING RATE RECOMMENDATIONS

Rider Weight	Coil Spring Rate
120-140lbs	300
140-160lbs	350
160-180lbs	400
180-200lbs	450
200-220lbs	500
220lbs+	550

LITHIUM SHOCK FITMENT COMPATIBILITY (SMALL/MEDIUM)

Shock	Small	Medium
Rockshox Super Deluxe Air 2022 (B2)	NO	YES (Reversed)
Rockshox Super Deluxe Air 2023+ (C1)	NO	NO
Rockshox Super Deluxe Coil 2022 (A1)	YES	YES
Rockshox Super Deluxe coil 2023+ (B1)	YES	YES
MRP Hazard Coil	YES	YES
Cane Creek Kitsuma Air	YES	YES
Ohlins TTX2 Air	YES	YES
DVO Topaz	YES	YES
DVO Jade	YES	YES
Fox FLOAT X	NO	YES (Reversed)
Fox FLOAT X2	YES	YES
Fox DHX2	YES	YES

* Photos of bike/spec may vary slightly from actual spec based upon pre-production frame and availability of parts. Any substituted parts will be of equal or greater value than original option listed. Complete bikes ship as a frame and build kit. While frames are prepped, reamed, chased and faced, they do require experienced assembly. If you are not confident in fully assembling and tuning your new Canfield bike, we recommend visiting your favorite local bike shop.
